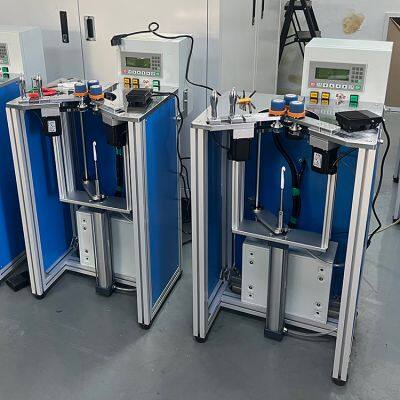

HY-R28 Pneumatic magnetic ring hook wire winding machine

Product Details

Product Description

Product Description
Pneumatic Magnetic Ring Hook Machine
HY-R28 Pneumatic magnetic ring hook wire winding machine
Advantages of pneumatic crochet winding machine
Use the foot switch to start, convenient and fast and control the crochet hook to move up and down.
The cable uses optical sensors to calculate the number of coils, which is fast and accurate,
and improves production efficiency
Special crochet hook for precision processing, does not hurt the enameled wire.
Pneumatic crochet method is used to complete the inner diameter and the enameled
wire diameter is less limited
Power supply voltage: two-phase 220V
Total power: 200W
Air pressure: 0.5-0.7Mpa
Finished outer diameter: 27mm-80mm
Finished inner diameter: 10mm
It can be wound with 3.0mm wire diameter, and can be double-wired in parallel.
Note: Configure PLC control 3 groups of stepping motors, can be forward and reverse,
electronic counting function, angle function.
Toroidal winding machine suitable for large and special magnetic rings

Wire diameter	0.3-3.0mm
power supply	AC220V/50HZ
Inner diameter range	Depends on crochet size
Start method	Air pressure control
Winding method	Pneumatic drive crochet winding
Total power	200W
Air pressure	0.5-0.7Mpa
Finished outer diameter	27mm-80mm
Machine Size (mm)	1000500350mm
Machine weight	40kg
