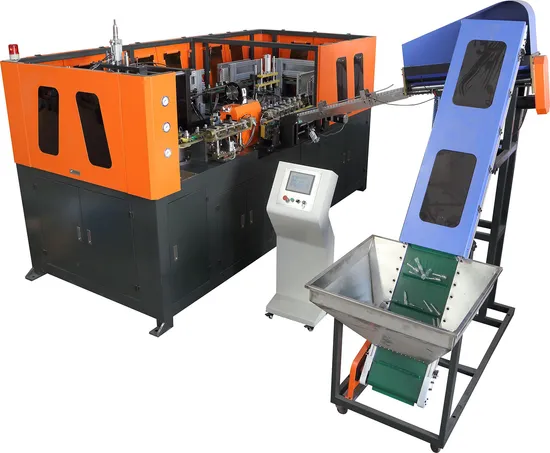

Pet Blowing Machines for Drinking Water (BM-A4)

Product Description

Pet Blowing Machines For Drinking Water
1. Size: 250ml-200ml
2. Speed: 4000bph@500ml
3. CE, ISO
1. Size: 250ml-200ml
2. Speed: 1500bph@500ml
3. CE, ISO
Newly designed and reformed on previous experiences of our manufacture.
PET bottle blowing machinery for water beverage drink
Specification:
BM-A2 automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from200-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
PET bottle blowing machinery for water beverage drink
A. Working power of the controller: 100-240VAC
B. Working power of the magnetism valve of the bottle blowing machine: 220VAC or 24VDC
Technical parameter

TYPE	ITEM	UNIT	BM-A4 technical data
Container	Product material	/	PET
	Container volume	L	0.05-2.0
	Theoretic output	Psc/hr	4200
	Preform length	MM	50-200
	Max height of bottle	MM	320
Molding	Preform inner diameter	mm	15-60
	Bottle diameter	mm	35-110
	Max mold plate dimension (L × W)	mm	380 × 460
	Max mold thickness	mm	200
Air compressor	High pressure compressor	M3/Mpa	1.2/30 × 3set
	Locking force	KN	170
	Mold opening stroke (adjustable)	mm	200
	Low pressure compressor	M3/Mpa	2.0/10 × 1sets
	Air dryer	M3/Mpa	2.0/30 × 1sets
Main machine electricity	Power	KW	30
	Voltage / frequency	V/Hz	380/50hz
Machine size and weight	Main machine (L × W × H)	M	4.2 × 1.8 × 2.0
	Main machine weight	T	4.2
	Conveyor (L × W × H)	M	1.4 × 1.1 × 1.85
	Conveyor weight	T	0.
	High pressure compressor (L × W × H)	Kg	1.90 × 0.75 × 1.50 × 3sets
	Low pressure compressor (L × W × H)	M	185 × 0.75 × 1.50
	High pressure air reservoir tank (D × H)	M	0.70 × .25/3.0
	Air dryer (L × W × H)	M	0.85 × 0.50 × 0.95
	Air filters	Kg	10 × 5pc
Cooling water: cooling water recycling system can be used with its power of 8~10 liter per minute and 2~3 kilos water pressure
Total power: 50KW
Safety	Auto emergency alarm	Safety inter-locking device

---
