High Performance Screw Bed CNC Machine

Product Description

High performance screw sub nut mushroom bed cnc machine
Product Description
Suitable for: Angle valve, ball valve, three-way valve.
Feature
1: This machine tool adopts numerical control program to simplify the operation interface. (CNC system)
2: The structure adopts HT300 integral casting process and three times aging treatment to ensure that the precision is not out of shape
3: Processing purposes: suitable for products and drawings provided by customers, or customized.
4: Action part: according to the requirements of the processing product layout.
5: Workbench operation mode :8 indexing (servo turntable), 1/8=1 second.
6: Fixture type: hydraulic synchronous clamp.
7: Equipment matching and scheduling machine.
8: Spreading tool function: standard CNC lathe function, pick teeth can be processed NPT thread, arc.
9: Using absolute coordinates, M3 bus.
10: Processing efficiency :6-9 seconds/piece.
Product Parameters

Project	Parameters	Project	Parameters
NC system	Taiwan New Generation 21TB(optional)	Spindle form	A2-5
Spindle motor	Electric spindle 7.5kW	X/Z axis repeated positioning accuracy	< 0.008 mm
Spindle speed	30-3500r/min	X/Z direction travel	400mm/300mm
Cutter wheel motor	Figure far 4N/M	The power head can be adjusted	- 5 ° ~ + 15 °
Cutter wheel motor speed	10-3000r/min	Maximum speed of power head	24000r/min
The cutting wheel can be adjusted	- 15 ° ~ + 15 °	Power head cooling mode	Oil cooling (5#)
Hydraulic power station	1.5kWx 1	Bed rotation diameter	280mm
Chuck system	3H-06	Maximum working length	300mm
Orbital form	roller	Overall dimension	1850x1800x2000mm
Move X/Z fast	X15m Z20m	weight	2300KG

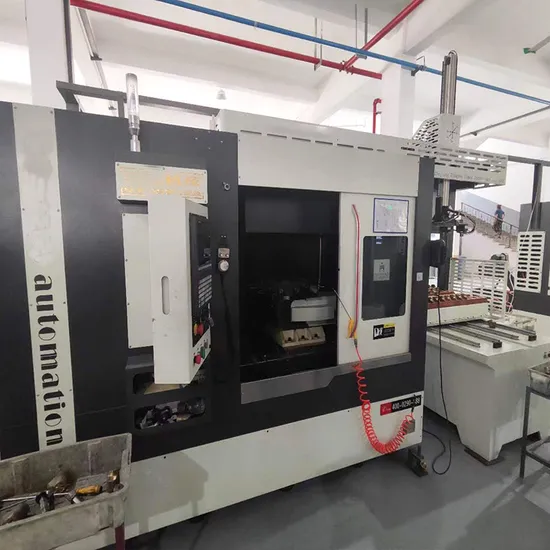

Detailed Photos
hot selling product
https://haochenmachine.en.made-in-china.com/product/rTkUDulYOihB/China-High-Performance-Screw-Sub-Nut-Mushroom-Bed-CNC-Machine.html?pv_id=1if9lbbkee7&faw_id=1if9lbed2fde
Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.

---
