US$30,000.00-60,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
PP-R, PP, PE water supply pipe production line
Product Type
Extrusion Molding Machine
Feeding Mode
Multiple Feed
Assembly Structure
Separate Type Extruder
Computerized
Non-Computerized
Product Type-1
Granulating Extruder
Product Type-2
Profile Extrusion Molding Machine
Transport Package
Film and Wood Package
Product Description
Product Description

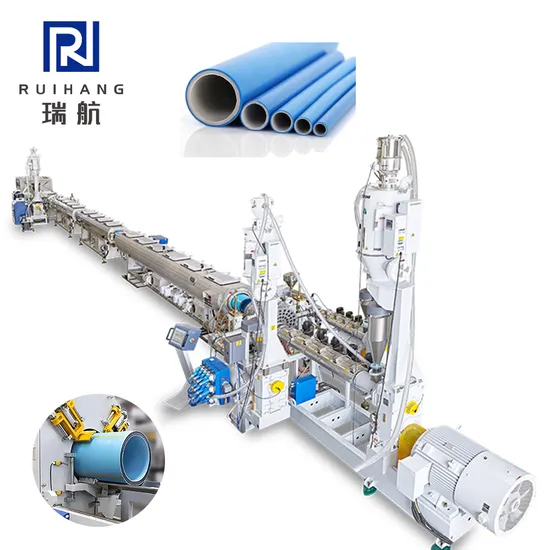

Production line composition:
Automatic feeder, single screw extruder, mold, vacuum sizing water tank, spray cooling water tank, haul-off machine, cutting machine, stacking rack and PLC control system.
Main features of the production line:
1. The extruder has the advantages of high plasticization rate, uniform melt, and continuous production stability. High-performance gearbox reducer. High torque, long service life, and low noise.
2. Surface nitriding, after nitriding, the product has excellent wear resistance, fatigue resistance, corrosion resistance, high temperature resistance, and a long working life.
3. All parts are from well-known domestic and foreign brands.
Features and applications of the products produced:
It is a green and environmentally friendly pipe with the characteristics of hygiene, non-toxicity, no rust, no scaling, high temperature resistance, long life, and high pressure resistance.
It is widely used in living sanitary drinking water supply and hot water heating systems in industrial and civil buildings. It is an upgraded product of copper pipes, galvanized steel pipes, and aluminum-plastic pipes.
Product Parameters
| Pipe unit model | SJG315 | SJG-450 | SJG-630 | SJG-800 | SJG-1200 |
| Pipe range(mm) | 90-315 | 110-450 | 250-630 | 400-800 | 630-1200 |
| Pipe form | A | A B A | A | A B A | A | A B A | A | A B A | A | A B A |
| Extruder | SJ100 | SJ90/75 | SJ120 | SJ100/75 | SJ120 | SJ120/90 | SJ150 | SJ120/100 | SJ165 | SJ150/120 |
| Production Capacity(kg/h) | 200-400 | 250-450 | 250-450 | 300-500 | 300-500 | 400-600 | 600-1000 | 600-1100 | 600-1200 | 800-1300 |
| Total installed power(KW) | 200 | 250 | 250 | 300 | 300 | 350 | 400 | 450 | 500 | 600 |
Detailed Photos
Product Display :
