Customized Heavy Duty Loading Pallet Conveying System Pallet Chain Conveyor System

Product Description

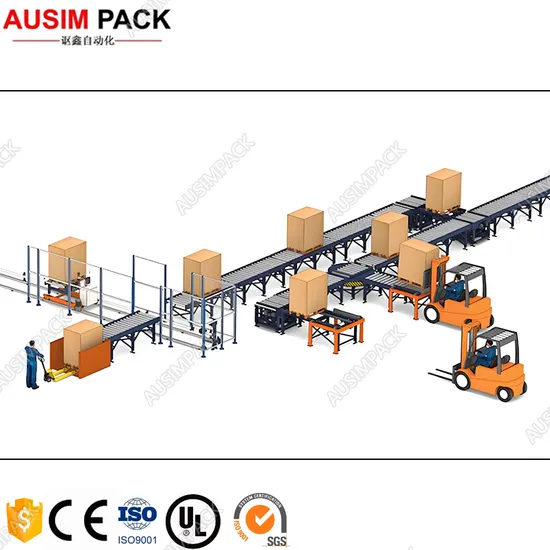

Product Description Ausim Pallet Conveyor use chain as carrier to convey materials with high transmission capacity.
Mainly used to transport pallets, large turnover box etc. also can be used as assembly lines or transmission for material storage. Chain Pallet Conveyor is usually used together with lifter, curve conveyor, pallet collection machine to form completed set of logistic transmission system, so that can finish product from raw materials to the production, assembly, finished product storage and delivery etc.
Characteristics
Chain Pallet Conveyor frame use aluminum or carton steel, with feature of simple structure, easy maintenance, low consumption and low cost. Chain conveyor conveying goods in pallet types ,is composed of frame assembly, drive assembly, support, chain and guard rail assembly etc. Motor on drive frame drives chain on both sides by drive shaft assembly. Chain is running along the tracking on frame. There is chain tensioning unit on drive frame. Steel or aluminum is available for frame material. Standard chain conveyor uses 10B-2 double row straight chain. Select formed steel for standard guard rail. In special cases, it can be special guard rail according to working condition requirements. Support uses welded or bolted support. Adjustable foot is mounted at the bottom for height adjustment within the range of ±30mm. Distance between supports is determined by working condition, usually it is between 800-1500mm.
Product Parameters

Installation way	Fixed
Width	600/800/1000/1200mm or customized
Motor	SEW/NORD
Driven type	Signal chain wheel/Double chain wheel
Chain type	Signal sprocket chain/ Double sprocket chain
Frame	Carton steel
Remark	If you need other non-standard specification size, pls contact with our sales freely.

Our pallet conveyors include corrosion resistant zinc plated rollers with a close-spaced roller pitch which provides smooth pallet movement. By eliminating the bouncing, bumping and vibrating caused by standard 4" roller pitches our systems reduce slipsheet usage which translates into cost savings and faster cycle times at the palletizer.
Our pallet conveyor product line also includes a full range of pallet dispensers.
Our single source approach to turnkey conveyor solutions includes assessing, designing, specifying, manufacturing, programming, integrating, testing, installing, commissioning and handing-off production ready packaging lines. The broad scope of our responsibility reduces risk for the customer and frees-up their key personnel to focus on getting finished product out the door.
The Ausim conveyor team includes highly trained engineers and project managers specializing in conveyor systems. They deliver engineering expertise supported by packaging line design tools and conveying system integration know-how to every project.
Our conveyor design and conveyor manufacturing capabilities are world class, and the materials of construction and conveyor components used in our systems are second to none.
Certifications
Our Advantages
Company Profile Ausim Automation Technology (Shanghai)Co.Ltd, which is located at Qingpu Industry Zone, Shanghai, closed to great Hongqiao transport hubs, lies north to the spectacular Sheshan Scenic Area, Traffic in convenient and strategic location, we are the most professional manufacturing in shrink wrapper, carton sealer and erector , pallet wrapping machine which combined with R & D, manufacturing, sales and service as one of the high-tech enterprises.. always pursue the "quality first, the credibility of the first" business purposes, and constantly respected "people-oriented, technology leadership, service-oriented" modern enterprise management philosophy. Improve technical talent, update production equipment, create new products is our pursuit of the goal. All employees to work, innovation, integrity, and jointly set a stable market, improve the corporate image. The company introduced advanced talent and technology, independent research and development, production and transformation of the models stable performance, excellent quality, user-friendly operation, the products are widely used .Become the domestic and foreign customers trusted partner.

---
