Veinasa-Cxs02b-N Nmea-0183 Compact Wind Speed and Direction RS485 Ultrasonic Sensor Marine Weather Station Meter Sensor

Product Description

Veinasa-CXS02B-N NMEA-0183 Compact Wind Speed and Direction RS485 Ultrasonic Sensor Marine Weather Station Meter Sensor Product Description
Veinasa-CXS02B-N NMEA-0183 Compact Wind Speed and Direction RS485 Ultrasonic Sensor Marine Weather Station MeterSensor is a measuring instrument that uses ultrasonic waves to travel in the air to measure wind speed and direction. The Veinasa-CXS02B-N Ultrasonic Sensor uses a low-power chip inside and consumes only 0.2W. Product Parameters

	Measurement range	Accuracy	Resolution
Wind Speed	0 - 40m/s	±3%(@25ºC)	0.1m/s
Wind Direction	0 - 359°	±3°(@25ºC)	1°
Digital Output	RS232,RS485,SDI-12(Choose one)
Communication baud rate	4800 - 19200
Protocol	NMEA-0183
Protection level	IP65
Operating temperature	-40ºC - +60ºC
Storage temperature	-50ºC - +80ºC
Working Humidity	0 - 100%
Power Demand	VDC: 5-30V
Power consumption	0.2W
Dimensions /weight	Φ84×120mm 0.2kg/ 0.38kg
Material	Aluminum alloy/ASA(default)

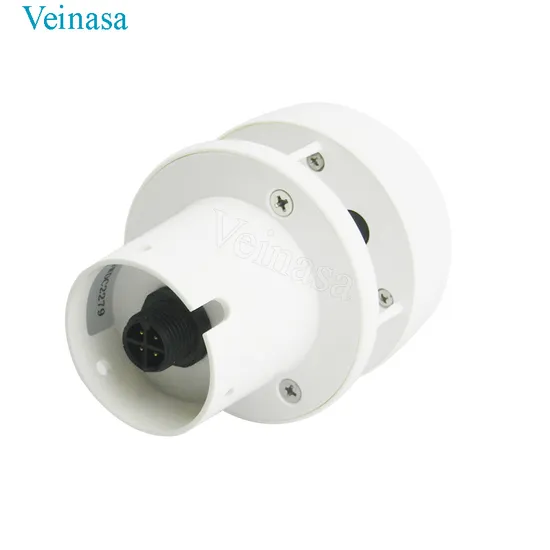

Product Display
What's the principle applied by this product?
Veinasa-CXS02B-N adopts the principle that ultrasonic waves travel through the air to measure wind speed and direction. Main Features of Veinasa-CXS02B-N:
* Maintenance free and long service life
* No moving parts, zero wear
* Engineering plastic or aluminum alloy casing, lighter
* Using ultrasonic probe reflection type, the structure is more compact
* Acoustic phase compensation technology with higher precision Veinasa-CXS02B-N is especially suitable for use in solar or battery-powered environments where power consumption is relatively high. Thanks to the new technology and new technology, the structure is more compact and compact. Optional temperature and air pressure modules are also available. The shell is made of metal cast aluminum and ASA, which is convenient for users to use in different environments. Application case
Applications of Veinasa-CXS02B-N:
Farmland meteorological detection Tower crane wind speed monitoring Photovoltaic power plant Hydraulic engineering Ship boat marine, etc Company Profile
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor Veinasa-CXS03A.
Q: What's the main characteristics of this wind speed sensor?
A: Congratulations, the CXS02B adopts a low-power chip inside and the lowest power consumption is only 0.2W. It is very suitable to be used for solar energy or battery power environment with high power consumption requirement, factory price but amazing quality.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like air pressure, temperature, relative humidity, we have this existing model Veinasa-THPRW-03.
Q: What's the common power supply and signal output?
A: Common power supply and signal output is DC3-30V, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol. If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this wind speed sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What's the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What's the standard cable length? A: Its standard length is 4m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it's 1 year. We can send you detailed warranty document if needed.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
Packaging & Shipping

---
