China Wholesale Price Armor Loose Tube Filled with Jelly Steel Wire Central Strength Member Duct Fiber Optic Cable for Outdoor

Product Description

China Wholesale Price Armor Loose Tube Filled with Jelly Steel Wire Central Strength Member Duct Fiber Optic Cable for Outdoor

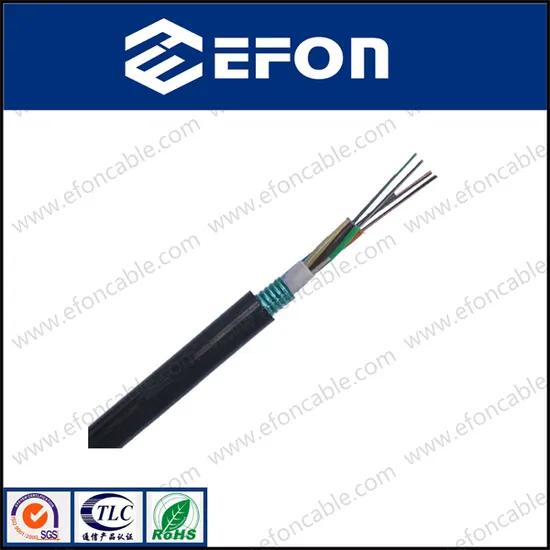

Product Description GYTS Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber
counts with the flexibility and versatility required for today's most demanding installations, including duct and
underground conduit.

Product Construction:
Fiber:
2-288 fiber
Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP) or steel wire. Armor:
Corrugated steel tape
Outer Jacket:
Black UV Polyethylene(PE)
Features:
Up to 288 fibers. Loose tube gel-filled construction for superior fiber protection. Corrugated steel tape armor to protect cable from mechanical damage. UV and waterproof design. Application:
Interbuilding voice or data communication backbone.Installed in duct, underground conduit . Optical Characteristics:


Structure and Technical Specifications:

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2~36	10.7	132	6	6	1500	600	1000	300
38~72	12.0	165	12	6	1500	600	1000	300
74~96	13.8	204	12	8	2000	600	1000	300
98~120	15.3	240	12	10	2000	600	1000	300
122~144	17.0	284	12	12	2500	600	1000	300
146~216	17.1	285	12	18(2 layers)	2500	600	1000	300
218~288	19.5	350	12	24(2 layers)	3000	600	1000	300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.
We produce and test cable comply with following standard:

Mechanical Performance
Max Tension Performance	IEC 60794-1-2-E
Max. Operation Tension	IEC 60794-1-2-E1
Crush Test	IEC 6079 -1-2-E3
Impact Test	IEC 60794-1-2-E4
Repeated Bending	IEC 60794-1-2-E6
Torsion Test	IEC 60794-1-2-E7
Cable bend	IEC 60794-1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794-1-2-F1
Water Penetration	IEC 60794-1-2-F5B
Filing Compound Flow	IEC 60794-1-E14

main products
more information:
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.

Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.

Return and Warranty:
All products have been tested before ship out
All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

---
