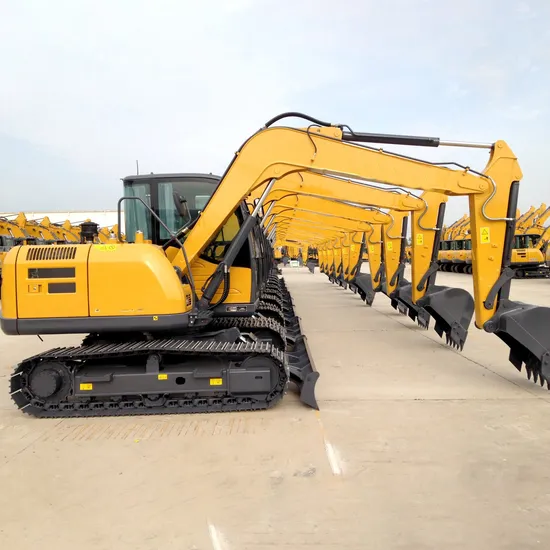

New 7.5ton Xe75ga Crawler Excavator Small Excavator Mini Hydraulic Digger with 0.33m3 Bucket

Product Description

New 7.5ton Xe75ga Crawler Excavator Small Excavator Mini Hydraulic Digger with 0.33m3 Bucket
Product Description
XE80D adopts a good engine excellent in environmental protection and energy saving. Moreover, it uses a load sensitive hydraulic system, able to guarantee operator's better controlling of the machine and better movement coordination, reduce the demand for operation proficiency of the driver; in addition, the reliability of this system has been recognized by the majority of users.
The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members.
The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.
* More energy-conservation and environmental protection By adopting famous brand engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.* More efficient return Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately,which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.* More reliable and durable Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.

Product Parameters

Description		Unit	Parameter value
Operating weight		Kg	7730
Bucket capacity		m³	0.33
Engine	Model	/	4TNV98-ZCSXG
	No. of cylinders	/	4
	Output power	kw/rpm	44.8/2200
	torque/speed	N.m	225.7-245.8/1650
	Displacement	L	3.319
Main performance	Travel speed(H/L)	km/h	5.0/2.7
	Rotating speed	r/min	11
	Gradeability	°	35
	Ground pressure	kPa	34.85
	Bucket digging force	kN	57
	Arm crowd force	kN	38
	Maximum traction	kN	68.3
	Main pump	/	/
Hydraulic system	Rated flow of main pump	L/min	176
	Pressure of prime valve	MPa	28
	Pressure of travel system	MPa	27.4
	Pressure of swing system	MPa	20.6
	Pressure of pilot system	MPa	3.5
Oil Capacity	Fuel tank capacity	L	137
	Hydraulic tank capacity	L	82
	Engine oil capacity	L	10
Appearance size	Overall length	mm	6215
	Overall width	mm	2280
	Overall height	mm	2690
	Width of platform	mm	2260
	Overall width of chassis	mm	2200
	Width of crawler	mm	450
	Length of wheel	mm	2195
	Crawler gauge	mm	1750
	Clearance under counterweight	mm	800
	Min. ground clearance	mm	373
	Dozer blade width/height	mm	2200/396
Working scope	Max. digging height	mm	7120
	Max. dumping height	mm	5160
	Max. digging depth	mm	4070
	Max. vertical wall digging depth	mm	3120
	Max. digging reach	mm	6245
	Min. swing radius	mm	1800
	Min. tail swing radius	mm	1865
	Max.dozer blade hoist height	mm	363
	Max. dozer blade digging depth	mm	346
