Basic Info.
Automatic Grade
Semiautomatic
After-sales Service
Online
Left&Right Materials Shelf 3 Meters
Effective Positional 2.5 M
Main Spindle Speed
4000 R/Min
Transport Package
Export Standards
Specification
1360*840*1350 mm
Production Capacity
2000 Per Year
Product Description

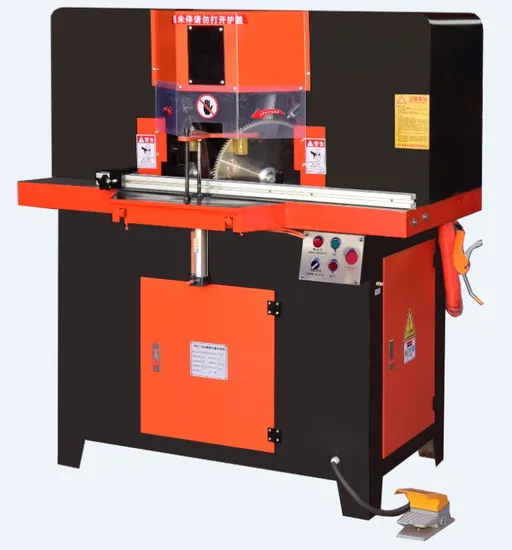

MJ355 45 DEGREE CUTTING MACHINE
Specification
Model
| MJ355
| MJ405
|
Left&Right Materials Shelf 3 Meters
| Effective Positional 2.5 M
| Effective Positional 2.5 M
|
Cutting Angle
| 45°*2
| 45°*2
|
Motor power
| 2.2kw*2
| 2.2kw*2
|
Main spindle speed
| 4000r/min
| 4000r/min
|
Working pressure
| 0.6-0.8Mpa
| 0.6-0.8Mpa
|
Blade specification
| Φ355*Φ25.4 mm*3.2*120T
| Φ405*Φ25.4 mm*3.2*120T
|
Machine Cutting Width
| 95 MM Max
| 135 MM Max
|
Machine Cutting Height
| 95 MM Max
| 135 MM Max
|
Machine Size
| 1360*840*1350 MM
| 1340*900*1450mm
|
Machine Weight
| 350 KGS
| 480kgs
|
Applicable material
| Aluminum alloy, wood plank, foam, acrylic, plastic steel, tape, ABS, PVC, PS
|
APPLICATION
TOP RATED
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.
SUCCESSFUL CASES
CERTIFICATE
PAYMENT AND LOGISTICS
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.
>>
