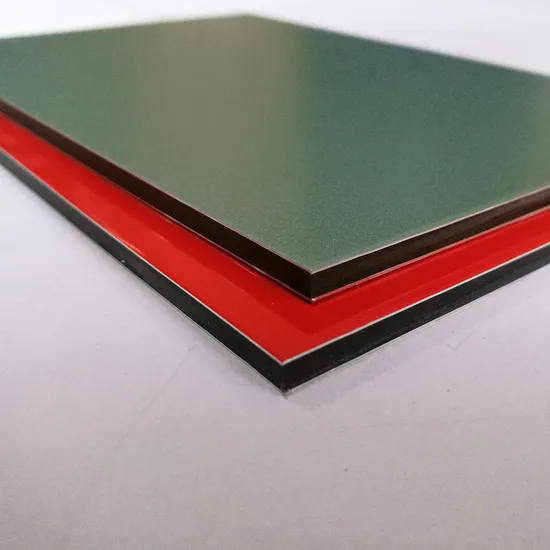

4X8 Feet 4mm ACP Sheet Aluminum Composite Panel

Product Description

Product Description :
Aluminum Composite Panel is a kind of sandwich panel with two thin Aluminum sheets bonded to a non-aluminum core.Aluminum composite panels are very commonly used for external building facade cladding as well as interior decoration. Uses include wall panelling, ceiling and partitions, soffits and beams, canopies, shop fronts and signage etc.Due to their availability in numerous colors and finishes, they are an architect/interior designer's material of choice for any kind of project.

Specifications of ACP sheet		Dimensional tolerance
Panel Thickness	2mm,3mm,4mm,5mm,6mm	Panel Width	+/_2mm
Panel Width	1000mm,1250mm,1500mm,2000mm (maximum)	Panel Length	+/_3mm
Panel Length	1000mm-6000mm	Panel Thickness	+/_0.2mm
Surface coat	One side coil coated,backside lacquer finish	Panel Diagonal	<=5mm
Other surface	Both side coil coated lacquer,One side anodized,backside lacquer finish	Aluminum sheet thickness	+/_0.02mm
Standard size	1220mm*2440mm*3mm for interior 1200mm*2440mm*4mm for exterior	Standard color	30 kinds.Special color available upon request

Characteristics of ACP sheet	Application ACP sheet
1.High resistance to peeling	1.Exterior architecture cladding
2.Superior weather resistance	2.Interior designs
3.Light weight and easy to process	3.Advertisings Signage
4.Excellent fire resistance properties
5.Coating evenness
6.Diversified colors
7.Easy for maintenance
8.Impact resistance

---
