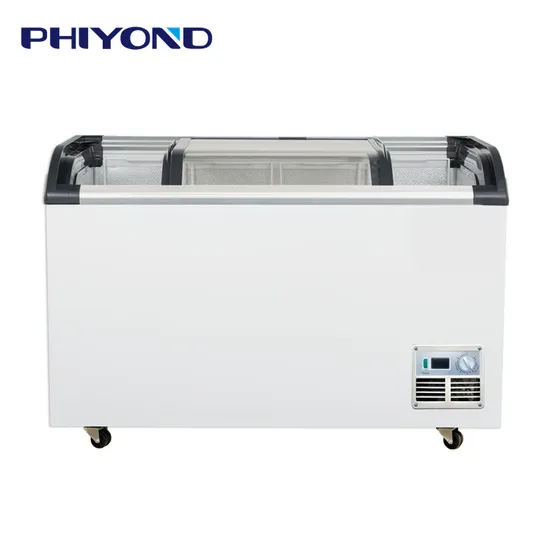

Phiyond SD-Q550 520L Luxury Style Ice Cream Freezer Curved Glass Door Chest Freezer

Product Description

PHIYOND SD-Q550 520L Luxury Style
Ice Cream Freezer Curved Glass Door Chest Freezer
<<<View Our Showroom>>> Product Parameters

Model		SD-Q550
External Dimension(WxDxH) (mm)		1535*680*850
Volume	Total Effective Volume (L)	337
	Refr Chamber Volume(L)	-
	Total Volume(L)	520
Climate Class		5(N)
Temperature Range (°C)		Min ≤-22
Voltage/Frequency (V/Hz)		220~240/50 110~120/60
Total Input Power(W)		355
Refrigerant		R290
Refrigerant Charge (g)		125
Foaming Agent		Cyclopentane
Thickness of Foaming Layer (mm)		75
Temperature Controller		7-Setting Mechnical Thermostat with Temperature Display
Glass Door		LOW-E Tempered Glass

Main Models

Model		SD-Q350	SD-Q450	SD-Q550	SD-Q650	SD-Q750
External Dimension(WxDxH) (mm)		1035*680*850	1275*680*850	1535*680*850	1815*680*850	2000*680*850
Volume	Total Effective Volume (L)	202	267	337	413	466
	Refr Chamber Volume(L)	-	-	-	-	-
	Total Volume(L)	320	420	520	620	720
Climate Class		5(N)	5(N)	5(N)	5(N)	5(N)
Temperature Range (°C)		Min ≤-22	Min ≤-22	Min ≤-22	Min ≤-22	Min ≤-22
Voltage/Frequency (V/Hz)		220~240/50 110~120/60	220~240/50 110~120/60	220~240/50 110~120/60	220~240/50 110~120/60	220~240/50 110~120/60
Total Input Power(W)		235	285	355	385	440
Refrigerant		R290	R290	R290	R290	R290
Refrigerant Charge (g)		110	120	125	135	155
Foaming Agent		Cyclopentane	Cyclopentane	Cyclopentane	Cyclopentane	Cyclopentane
Thickness of Foaming Layer (mm)		75	75	75	75	75
Temperature Controller		7-Setting Mechnical Thermostat with Temperature Display	7-Setting Mechnical Thermostat with Temperature Display	7-Setting Mechnical Thermostat with Temperature Display	7-Setting Mechnical Thermostat with Temperature Display	7-Setting Mechnical Thermostat with Temperature Display
Glass Door		LOW-E Tempered Glass	LOW-E Tempered Glass	LOW-E Tempered Glass	LOW-E Tempered Glass	LOW-E Tempered Glass

Product Pictures

Packaging & Shipping
*Strong Export Brown Carton one piece per unit, cystosepiment inside and strong belt outside to strengthening the products.
*For sample, wooden box besides will be used above shipping terms.
Workshop & Equipment
Certifications
FAQ
1. How do I know your quality?
Detailed product photos and sample will be able to verify our quality.
2. Can I get a sample first?
Yes, sample is available. We can send out sample for test if the order quantity is big enough.
3. What's the MOQ?
Normally 1*20'GP, 1*40'GP or 1*40HQ, some models can be tried for small quantity. Pls check with our sales team to confirm.
4. Can i get discount from buying your goods?
The price depends on the quantities, we will automatically making discount to our customer.
5. How long does your delivery?
According to your order, generally 20 workdays after confirming all the printing materials.
6. Can you make products from our designs?
Yes, we do OEM seivice.
7. Shall we pay extral cost for OEM service?
The OEM services are totally free of charge.
8. How do I make payment?
You could pay by Westunion, Paypal, T/T, L/C and other negotiable payment terms.
9. Are you a trading company or factory?
We have the factory mainly producing refrigeration equipent. Our factory located in Qingdao which is the largest commercial kitchen manufacturing base in China.
But no factory can fully produce everything, not all traders' price is high.
Our team has been in the commercial kitchen & refrigeration industry for more than 12 years. So we can guarantee to give very good quality products, best reasonable price, customer first service.
The key point for a buyer is to find a reliable supplier in China!!! We are trustworthy!!!

---
