Product Description
Product Description
Our heavy-duty shelf column roll forming machine has been widely used in the production of city shelves, storage shelves, super heavy shelves, and other profiles of cold roll forming. Adopting industrial control PLC and man-machine operation interface, this heavy plate rolling machine can effectively realize production automation. By inputting parameters such as hole spacing, product length and quantity, punching, molding, and cutting can be completed at one time during production.
Able to conduct continuous production without shutdown, these heavy plate rolling machines can ensure stable product quality with accurate sizes. With the help of machines in this series, you can not only lower the production cost of your shelf column roll racks but also greatly improve the working efficiency. In short, with multiple functions, our heavy plate rolling machines can be combined with different production needs so as to make the enterprises in the fierce market competition become more competitive.
Features and Advantages of Heavy Duty Shelf Column Roll Forming Machine
·
Cassette-type platform and quick-change machine base for multi-profile purposes are available for choice.
·
Both underground pit and overground accumulating devices are available for further selections.
·
Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting and automatic stacking devices are available for the choice to improve production speed greatly.
·
With a non-stop punching, flying cutting system, this heavy plate rolling machine can reach the production speed of 30m/min.
·
Patents under both CE Certified and EUROPEAN quality standards
·
Ready heavy plate rolling machines in stock for prompt delivery.·
Suitable Coil Sheet Material for Heavy Duty Shelf Column Roll Forming Machine
·
Suitable material: Cold/hot Rolled Steel, Galvanized Steel
·
Thickness: 1.0-2.0 (mm)
·
Yield Strength: 230-300 (MPa)
·
Width: As profile requests
Production Line Components and Parameters of Heavy Duty Shelf Column Roll Forming Machine
Decoile
| 3T/5T/8T
|
Leveling device
|
|
Underground pit/ overground accumulating unit
| optional
|
Servo Feeding Device
|
|
Holes punching device
|
|
Ground pit/ overground accumulating unit
| optional
|
Guiding device
|
|
Roll forming system
| 10-30m/min (adjustable)
|
Post cutting device
| flying cutting, tracking cutting and stop to cut are available for choice
|
Output System
| Manual supporter/ Auto Stacker (optional)
|
Auto Stacker
| (Output direction) Lateral/Longitudinal (optional)
|
Hydraulic system
| Power supply for holes punching /post-cutting system
|
Electric control system
| MITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested )
|

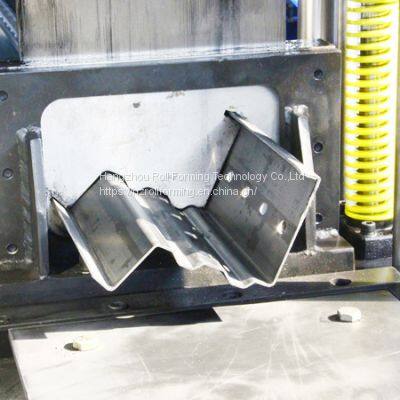

Working Flow of Heavy Duty Shelf Column Roll Forming MachineDecoiler - Leveling device - Ground pit/ overground accumulating unit (optional) - Servo feeding device - Hole punching device - Ground pit/ overground accumulating unit (optional) - Guiding unit - Roll Forming System - Post-Cutting to length(flying cutting, tracking cutting, and stop to cut are available for choice)Rack Profile DrawingsFinished Panels by Heavy Duty Shelf Column Roll Forming MachineSpecification of Heavy Duty Shelf Column Roll Forming Machine
Machine Condition
| Fully New, A Grade quality
|
Panel Shape
| As profile drawing and customer’s requirements
|
Operator needed
| 1 person
|
Power Supply
| 220V/380V/415V/460V, 50/60Hz, 3P (as requests)
|
Equipment Weight
| about10-20T
|
Dimension
| (L*W*H) about 30*3*2m
|
LOADING SIZE
| Normally need 2 x 40' container
|
Equipment Color
| normally Blue/White, or as requests
|
Place of Origin
| Zhejiang, China (Mainland)
|
Packing
| Standard and careful export packing
|
Our company, Hangzhou Roll Forming Technology Co, Ltd, has engaged in desingning and manufacturing roll forming, coil processing equipment and tube/pipe mill for 17 years. We provide roll forming production line, tube mill machine and etc.
>>
