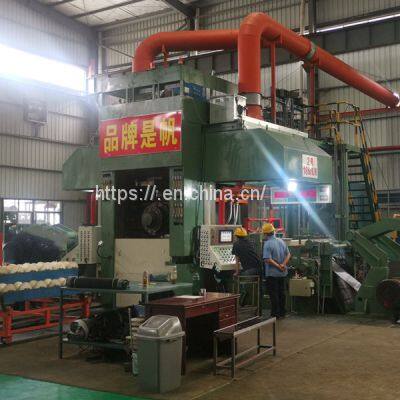

1450 Type reversible 18-Hi cold rolling mill for stainless steel
This cold rolling mill unit adopts the latest 18-Hi rolling technology which is a mature solution for production of cold rolled stainless steel strips. AGC, roll bending, roll shifting functions are equipped for excellent shape quality and thickness tolerance.
Specification of 1450 Type reversible 18-Hi cold rolling mill
Material to be rolled: stainless steels
Input width: 850~1300mm
Input thickness: max 4.0mm
Output width: 850~1300mm
Output thickness: 0.2~3.0mm
Coil weight: max 25 ton
Coil inner diameter: Ø 610 mm / Ø 508 mm
Coil outer diameter: Ø 2000 mm / Ø 900 mm (Max / Min)
Mill speed: max 360 MPM
Rolling force: 18000 kN (Max)
Composition of 1450 Type reversible 18-Hi cold rolling mill
It is composed of load car, payoff roll, head straightener, right recoiler, unload car, front devices, 18 Hi rolling mill, lift cover, roll changing car, backup roll changing car, rear devices, rear devices, left recoiler, belt wrapper, etc..
Scope of supply by Glimpse Technology
Whole set of equipment
Installation and commissioning supervision
