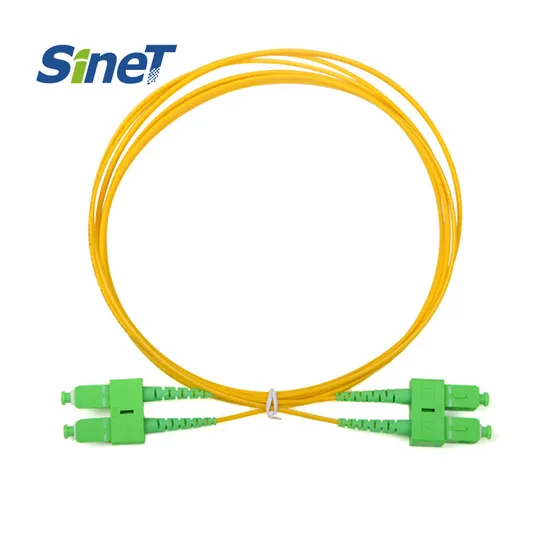

Cheaper Price Il Less 0.2dB Rl 60dB Sc APC Duplex Single Mode Optical Fiber Patch Cord

Product Description

Product Description SC APC DUPLEX FIBER PATCH CORDS FIBER JUMPER 2.0mm 3.0mm
Product description: Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. SINET fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. Inaddition, we also have MTP/MPO cables in stock.
Application of the product:
*Optical Fiber Communication System, *Optical Fiber Access Network, *Optical Fiber Data Transmission, *Optical Fiber CATV, Local Area
*Network (LAN), Testing Equipment
Main technical parameters: * Insertion loss: ≤0.2dB
* Echo Loss: PC≥40dB,UPC≥50dB,APC≥60dB
* Exchangeability test: ≤0.2dB
* Vibration test: ≤0.1dB (10-60Hz, 1.5mm amplitude)
* Tensile strength test: ≤0.1dB (0-15Hg tension, excluding 0.9mm optical fiber)
* High temperature test: ≤0.2dB (+85 C, lasting 100 hours)
* Low temperature test: ≤0.2dB (-40 C, lasting 100 hours)
* Temperature cycling test:≤0.2dB (-40 ~85 C, after 5 cycles)
* Humidity test: ≤0.2dB (+25ºC~+65ºC, relative humidity 93%, 100 hours later)

Product Name	Fiber Optic Patch cord	Fiber Model	SM G657A/A2
Product Model	FPC-SC/APC-DX	Fiber Core	DX
Optical Connector	FC/SC/LC/ST	Jacket Color	YELLOW
Interface	APC	Jacket OD	1.6/2.0mm/3.0mm
Work Environment	INDOOR	Jacket Material	PVC/LSZH

Parameter	SC, LC,FC,ST fiber patch cord
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.3	≤0.3	≤0.3	≤0.3
Return loss	≥45	≥50	≥60	≥30
Inter Changeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm

SINET, A PROFESSIONAL MANUFACTURER OF FIBER PATCH CORDS *Connector SC, ST, FC, LC, MU, MTRJ FC Optional *φ0.9mm, φ2.0mm, φ3.0mm cable diamter Optional
*PC, UPC and APC Interface Optional *Single Mode G652D G657A, Multi Mode OM1 OM2 OM3 OM4 Optional Detailed Photos Application
Company Profile
FAQ Q1: Are you a factory or trading company? A1: We are a manufacturer. All procedures of the cable assembly are finished in our factory. Q2: How can i get samples from you? A2: We can provide a few pcs free sample for your test. You can contact our sales and confirm which color you prefer. Q3: What is your Warranty? A3: All the products will have 12 months Warranty. Q4: Can you put my brand name (logo) on these products? A4: Yes! The professional OEM services is welcome. Our factory accepts to make the logo free for bulk orders. Q5: How about the package? A5: The package for patch cords depends on your requst. It can be both indivisually packed and bunlded packing. Q6: What's delivery time? A6: Lead time depends on the quantities of the mass order. If you need the products in hurry, contact our sales and they will give solution accordingly.

---
