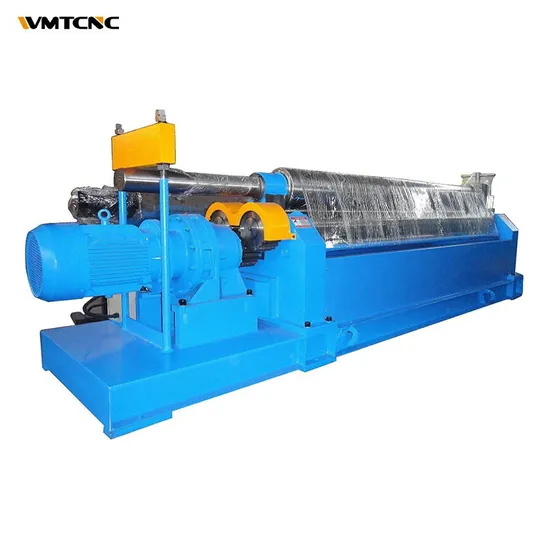

W11-8X2000 2m Steel Plate Mechanical Rolling Machine

US$5,500.00-6,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
W11 8x2000
Warranty
1-year
Condition
New
Certification
RoHS, ISO 9001:2008, CE, CS
Automation
Semi-Automatic
Suitable for
Rubber, Copper, Aluminum, Carbon Steel, Stainless Steel
Type
Roller-Bending Machine
Power
Mechanical
Machine
Metal Sheet Forming
Application
Machinery & Hardware
Type for Fold-Bending Machine
Electrical Bending Machine
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
HS Code
8462299000
Production Capacity
100 Sets Monthly

Product Description


Main specification and mchine details:

Specification		 Max Thickness
of Coiled Plate		 Max Width of
Coiled Plate		 Yielding Limit of
Sheet Metal		 Coiling
Speed		 Min Full
Loading Diameter
of Coiled Plate		 Diameter of
Top shaft		 Diameter of
Bottom shaft		 Central distance
between Bottom
Shafts		 Motor
Power		 Overall dimensions
mm mm MPa m/min mm mm mm mm Kw mm
W11-4×1500 4 1500 245 5 300 150 140 185 3 2900×720×1000
W11-6×1500 6 1500 245 5 450 160 160 250 4 2900×720×1000
W11-6×2000 6 2000 245 4.5 450 185 170 250 5.5 3650×820×1050
W11-6×3200 6 3200 245 4.5 380 240 180 280 7.5 4850×1100×1100
W11-8×2000 8 2000 245 4.5 400 230 180 300 5.5 3700×820×1050
W11-8×2500 8 2500 245 4.5 600 230 180 300 7.5 4150×1100×1100
W11-12×2000 12 2000 245 4.5 600 240 180 280 7.5 36500×1100×1100
W11-12×2500 12 2500 245 4.5 600 260 220 340 11 4200×920×1200
W11-12×3000 12 3000 245 4 700 280 250 360 11 4900×1300×1300
W11-16×2000 16 2000 245 4 650 260 220 340 11 3700×920×1200
W11-16×2500 16 2500 245 4 700 300 250 360 15 4400×1300×1300
W11-16×3200 16 3200 245 4 850 340 280 440 18.5 5300×14000×1400
W11-20×2000 20 2000 245 4 700 280 250 360 15 3900×1300×1300
W11-20×2500 20 2500 245 4 850 340 280 440 18.5 4600×1400×1400
W11-25×2000 25 2000 245 4 850 330 270 430 18.5 4100×1400×1400
W11-25×2500 25 2500 245 4 1200 380 310 550 22 5600×1550×2000
W11-30×2500 30 2500 245 4 1200 400 350 550 30 5760×1700×2110
W11-30×3000 30 3000 245 4 1200 450 390 600 37 5400×1700×2210
