US$11,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Computerized
Computerized
Certification
CE, ISO9001: 2000
Electronic Weft Feeder
Single Nozzle/Double Nozzle
Let-off
Mechanical/Electronic
Take-up
Mechanical/Electronic
Max Warp Density
80 Ends Per Inch
Max Weft Density
60 Pick Per Inch
Transport Package
Export Packing
Production Capacity
300 Sets/ Per Month
Product Description
JLH425S medical gauze weaving machine in best sell :
Features and main technical parameters

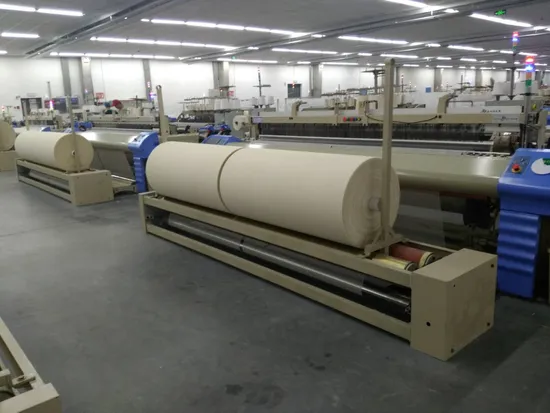

JLH425-1model air jet loom with high quality weaving, running stable, low noise low energy ,save labor ,width range of yam count ,low maintenance cost.
Product purpose
JLH425-1 model air jet loom is that we designed and developed a special high speed machine suit for low weft density weaving features .it's a best machine for medical gauze ,tyre fabrics, glial cotton ,dalrib, leather base cloth .
Advantages
JLH425-1model air jet loom with a width range of weave ,one loom can weave 1pc, 2pcs or 3 pcs except medical gauze but also can weave general fabric ,leather base fabric ,yam-dyed fabric and industrial fabric and so on ,the most reed width can reach to 340cm.
Reed width | 135cm,150cm,170cm,190cm,210cm,230cm,260cm,280cm,320cm,340cm,360cm |
| feeder | electronic feeder |
| nozzle | single nozzle,double nozzle |
| shedding | plain/cam/dobby |
| frame | 2pcs/4pcs/6pcs or more |
| Let-off | Mechanical/Electronic |
| Take-up | Mechanical/Electronic |
| Cloth roller | Normal/jumbo package |
| Edge | Selvage edge/tuck-in selvage |
Gauze fabric type (1pc or 2pc or 3pc at same time) | Cotton yarn count (S) | Warp & Weft density (pick per inch) | Gauze width (inch) | Production (m/day) | |
| 40 x 40 | 26x18 | 36"-134" | 730-1200 | |
| 40 x 40 | 16x14 | 36"-134" | 940-1530 | |
| 32 x 32 | 31 x21 | 36"-134" | 620-1020 | |
| 10 x 10 | 40 x20 | 36"-108" | 650-900 | |
We are TOP 1 manufcturer of gauze product making machinery in china , not only gauze weaving machine we are available , but also the whole gauze prodction line we can supply : including warping machine,bleaching machine,gauze machine.
>>
