US$100.00-2,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
TH-4, TH-5, TH-6, TH-7, TH-8, TH-9, TH-10
Model No.
Th-4, Th-5, Th-6, Th-7, Th-8, Th-9, Th-10
Test Pressure
0.2/0.25 MPa
Certificate
BV & CCS & ABS & Dnv
Maximum Pressure
0.14-0.18 MPa
Initial Pressure
0.08 MPa
Specification
As per request
Production Capacity
100000/PCS/Year
Product Description

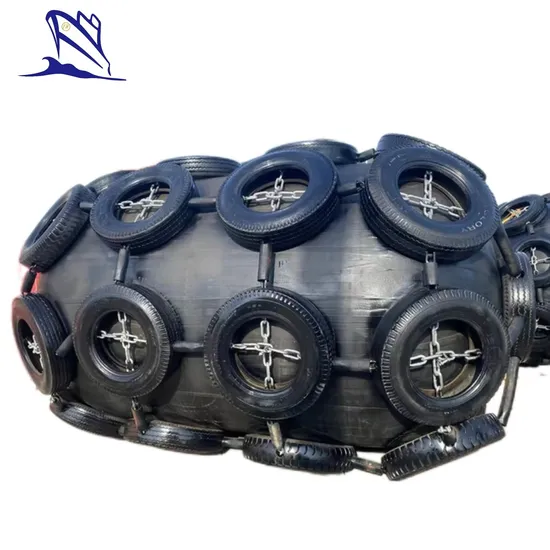

Product Description 1.Product Name: 2023 Hot Sale Rubber/Floating/Pneumatic yokohama fender price for Boat/Ship/Vessel/Dock/Marine
2.Material: natural Rubber
3.Test pressure: 0.2/0.25 Mpa
4.Maximum pressure:0.14-0.18 Mpa
5.Certificate: CCS, ABS, Lr, BV, Dnv
Inflatable rubber fenders (fenders) use air as the medium and compressed air to absorb impact energy, making the ship more flexible and flexible when docked, in order to achieve collision prevention and collision prevention effects. Compared with traditional compression type rubber fenders, they have the characteristics of high absorption of impact energy, low impact force on ships, simple installation, good elasticity, no deformation under compression, light weight, practicality and economy. So pneumatic rubber fenders are widely used in large tankers, PG vessels,ocean platforms,large docks, harbor and wharves.
Note: 1.The tolerance of reverse force and energy absorbed is +-10%. 2.Other specifications of pnuematic rubber fender are also available upon request of customers.
1.Strictly control the usage pressure and do not exceed the safe usage pressure.
2. The surface in contact with the fender must not have sharp protruding hard objects to prevent puncturing the fender surface.3. Try to avoid twisting the length direction of the fender.4. Before reusing the fender after long-term use or repair, an empty inflation test should be conducted. The inflation pressure should be the same as the factory's factory test pressure. During the test, inspectors should stay at least 3 meters away from the fenders. The use pressure of fenders repaired after extensive damage should be appropriately reduced. In addition, frequently used fenders should undergo the above inspection once a year.
The product meets the quality requirements of CB/T3795-1996 "Fender for Ship ". Comply with ISO14409 quality standards. Under the conditions of transportation, storage, and use that meet the regulations, if there are quality issues with the fender within two years, it is guaranteed to be returned, replaced, and repaired for free.
1. If the fender is not used for a long time, it should be washed and dried, filled with talcum powder inside and outside, and placed indoors in a dry, cool, and ventilated environment. |
2. The storage area for fender should be kept away from heat sources. |
|
|
1. If the fender is not used for a long time, it should be washed and dried, filled with talcum powder inside and outside, and placed indoors in a dry, cool, and ventilated environment.
2. The storage area for fender should be kept away from heat sources.
3. The fender should not come into contact with acids, alkalis, fats, and organic solvents.
4. When the fender is not in use, it should be stretched out and placed flat, and should not be stacked, nor should heavy objects be piled on the fender.
