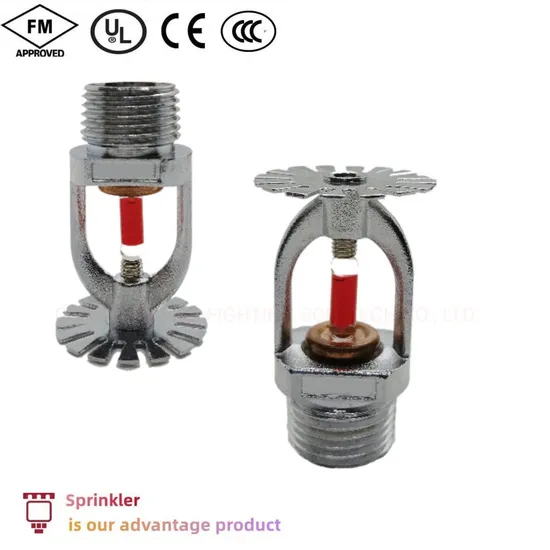

K5.6 1/2inch Conventional Brass Pendent Fire Sprinkler Company

Product Description

Product Description

TECHNICAL SPECIFICATION

style

Pendent Sprinkler

Upright Sprinkler

Sidewall Sprinkler

Concealed Sprinkler

ESFR

Model

T-ZSTX

T-ZSTZ

T-ZSTBS

ZSTDY

ESFR

Nominal Diameter (mm)

DN15

DN20

DN15

DN20

DN15

DN20

DN15

DN20

DN20

DN25

Connecting Thread (Inch)

1/2

3/4

1/2

3/4

1/2

3/4

1/2

3/4

3/4

1

Flow Rate(K)

80

115

80

115

80

115

80

115

115

Bulb Diameter

5 mm glass bulb for standard response 3 mm glass bulb for quick response

Response Time

15 seconds in general for 5mm glass bulb 8 seconds in general for 3mm glass bulb

SPRINKLER MATERIALS

material

Brass/Zinc alloy

Frame

Bronze Forging

Deflector

Brass

Finish

Brass and Chrome Plated and White Plated Available

Certificate

UL,FM,CE,CCC,ISO

Advantage

1.Our factory established in 2008, ,has more than 10 years of production experience, weare NO.l offire sprinkler manufacturers in China 2.We can provide OEM service,can do all styles . 3.Fast delivery, and the product has inventory, can be shipped as soon as possible

TEMPERATURE RATING

Temperature

Bulb Color

Temperature

Bulb Color

135°F 57°C

Orange

286°F 141°C

Blue

155°F 68°C

Red

360ºF/182ºC

Violet

175°F 79°C

Yellow

500ºF/260ºC

Black

200°F 93°C

Green

The glass bulb sprinkler head serves as a crucial element of any sprinkler system, tailored for venues where temperatures range from a minimum of 4ºC to a maximum of 70ºC. Ideal for deployment in diverse environments such as workshops, warehouses, hotels, shopping malls, KTVs, hospitals, cinemas, office buildings, and garages, it ensures optimal fire protection. The operational principle hinges on the glass bulb's heat sensitivity. When ambient temperatures reach a specific threshold, the bulb shatters, triggering the sprinkler to unleash a water cascade for efficient fire suppression.
Min.Order Quantity: Supply Ability: Port: Payment Terms:

2000 Pieces

300000PCS/Month

xiamen

L/C,T/T

Packaging & Delivery

Packaging Details: Delivery Detail:

carton packing: 37.5cmx20.5cmx29cm 200 pieces in one carton packing. 10.6KG weight each one carton

10,000 pieces can be ready for delivery within one week

Company Profile
______________________________________________
Founded in 2008, Guangwei Fire Fighting Scie Tech Co., Ltd. stands as a titan among China's fire sprinkler manufacturers. Our expansive facility spans 30,000 square meters and boasts a diligent workforce comprising 20 engineers, 30 technicians, and 500 additional staff members.
With dedicated efforts from our team, we've achieved an impressive annual turnover exceeding USD25,000,000. Our offerings, adhering to the stringent standards of GB50084-2017 and UL LLC, include fire sprinklers, fire alarm valves, sprinkler machines, and an array of fire equipment.
OEM service
Moreover, we provide OEM services, delivering top-tier products at competitive prices. This commitment has fostered trust, secured client support, and established enduring business partnerships. Our management philosophy emphasizes meticulous manufacturing and standardized processes to deliver superior products and impeccable service. Certified by the State Quality Supervising & Inspection Center for Fire Products, our products enjoy widespread acclaim in the US, Brazil, Turkey, Hong Kong, Saudi Arabia, Singapore, India, and beyond.FAQ
_________________________________________________
Q1: Are you a manufacturer or a trading company? A: We proudly operate four factories, with fire sprinklers as our specialty.
Q2: What certifications do you hold?
A: Our certifications include UL, FM, CE, CCCF, ISO9001, among others. Q3: Can you tailor products to our specifications?
A: Absolutely, we offer both OEM and ODM services, customizing all varieties of sprinklers to meet your needs.
Q4: Could you provide a sample? Is there a charge?
A: Yes, we offer samples at no cost, although you'll need to cover the courier expenses. Q5: What is the production lead time? A: For samples, expect a lead time of 1-3 days, with larger orders contingent on quantity.
Q6: Do your products come with a warranty?
A: Yes, we provide a one-year warranty on all our products, ensuring peace of mind.

---
