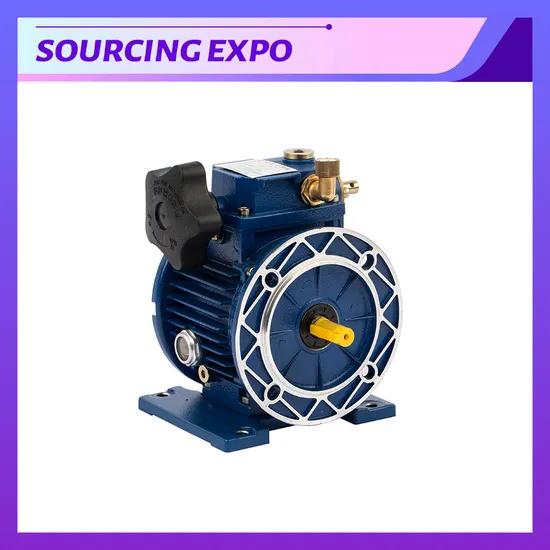

Blue Color Speed Variable or Speed Varator Gearbox

Product Description

Specifications The design of UDL series planet cone-disk step-less speed variator compromises the advanced technology both at home and abroad.
The products include the following main characteristics:
1) High speed regulating precision,up to 0.5-1 rotation
2) Large speed changing range:the speed ratio ranges from 1:4 to 1:7 freely
3) High in strength and long in service life
4) Convenient to regulate the speed
5) Continuous in running, front to back in running direction,smooth in driving,stable in performance and low in noise
6) Full in sealing and suitable for any environment
7) Compact in structure and small in volume
8) Made of high-quality aluminium alloy diecast into forming,good surface,light in weight and it never gets rusty
9) Good in adaptation: UDL series planet cone-disk stepless speed variators can be combined with all kinds of speed reducers as to achieve low stepless speed changing
UDL series planet cone disk stepless speed variators are widely used for foodstuffs,ceramics,packing,chemicals,pharmacy,plastics,paper making, mchine-tools, transportation,and all kinds of automatic production lines,pipelines and assembly lines which need speed-regulation.it is a good companion for your production.

Power	Model	speed ratio	n2(r/min)	M2(NM)
0.18kw	UDL0.18	1.6-8.2	880-170	1.5~3
0.37kw	UDL0.37	1.4-7	1000-200	3~6
0.55kw	UDL0.55	1.4-7	1000-200	4~8
0.75kw	UDL0.75	1.4-7	1000-200	6~12
1.1kw	UD1.1	1.4-7	1000-200	9~18
1.5kw	UD1.5	1.4-7	1000-200	12~24
2.2kw	UD2.2	1.4-7	1000-200	18~36
3kw	UD3	1.4-7	1000-200	24~48
4kw	UD4	1.4-7	1000-200	32-64

---
