Single Stage Automatic Blow Molding Machine with Ce SGS Approve

Product Description

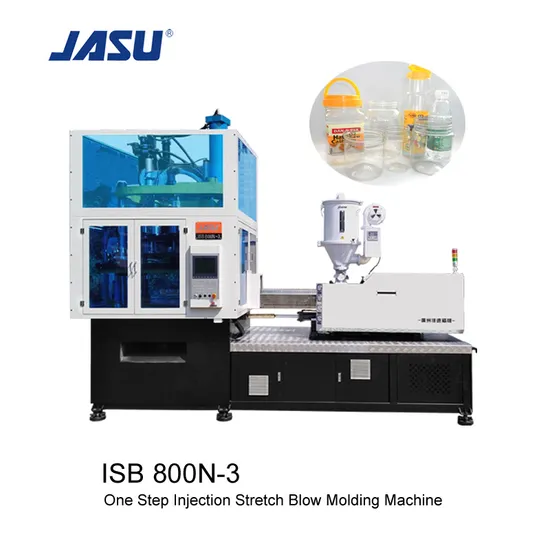

JASU FACTORY ONE STEP INJECTION STRETCH BLOW MOLDING MACHINE ISB 800N-3
JASU one step blow machines include
Injection blow molding machine and injection stretch blow molding machine.
The machines are three stations, injection preform, blow/stretch blow and product release. The raw material comes from the hopper to the injection
screw to inject preform; the plate rotates preforms to blow/stretch blow station with themselves heat, without any reheating for blowing,
Then the product will rotate to release station and drop down, it is fully automatically cycle rotation working mode.
JASU One Step Injection Stretch Blow Molding Machine advantages are as follows:
1. The wheel rotation is driven by electrical servo motor, not hydraulic.
2. Full automatic controlling system, easy operating
3. The temperature of material barrel and hot runner is controlled accurately by PIT.
4. More cost is saved than traditional machine.
5. Compact structure; less space needed
6. Injection: Hot runner and temperature control device are standard configuration. Only change mold for making a new product; Stretch Blow:
Hydraulic mold clamping, core insert, stretch blow and bottom molding are standard configuration;Product Release:Equipped with a standard ejector.

ISB 800N-3 Main Specification		Main Devices Brand
Material	PC,PP,PET,TRITAN,PCTG, PETG, PMMA,PS	Servo Motor and Oil Pump	Phase (Italy) and Eckerle (Germany)
Screw Diameter	40mm	Sealing Parts	SealTech, China
Screw L/D Ratio	20.5:1	Hydraulic Valve	Yuken(Japan), TAIWAN
Screw Speed	0-190	Air Valve	AirTAC
Theoretical Injection cavity	238cm3	Air Cylinder	AirTAC
Injection Pressure	174Mp	Controller (PC)	JASU, TAIWAN
Max.hydraulic Pressure	140kg/cm	Low-voltage components	Joint Venture
The actual injection quantity	225g(ps),8Oz	F.R.L	China
Screw Stroke	190mm	Servo Motor for Turntable	Inovance,China
Blow Clamping Force	80kn	Gear Reducer	SESAME, Taiwan
Clamp Tonnage	400kn
Wheel Diameter	800mm
Max.Height Of Bottle	220mm
Open Vertical Mode Trip	570mm
Max.Pump Pressure	16Mpa
Servo Motor	22kw
Double pump	22kw
Electric power	8.9kw
Tank volume	420L
Dimension of Machine	4.2*1.75*3.55m
Machine Weight	5T

For PC, PS,PMMA, SAN lamp cover, LED light lampshade,Christmas flash light, garden and street light.For PET , PETG high transparent,much thinner wall, cosmetic bottle , PET wide neck jar, PET pharmaceutical bottle For PP high transparent, baby feeding bottle, sport bottleFor PCTG, Tritan drinking water bottle, sport bottle.Mould and tooling, we have mould workshop ourselves, advanced CNC machine and smart design engineers,we can treat different material and size products from different customers over the world.Auxiliary machine,we will equip you with the necessary quality auxiliary machines to ensure the production plan running well,we can supply you one-stop service.
JASU group

Gauangzhou Jasu Precision Machinery Co.Ltd is a sabusidiary of JASU International Machinery Group locates in Guangzhou China, which is top 3 supplier of CNC machine tools in South China. JASU owns R&D center and factories in Guangzhou. JASU has been dedicated to manufacturing machine for 20 years. Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic and cost-effective one step Injection (Stretch) Blow Molding Machine. JASU has got high reputation and trust among customers by means of modern management method, perfect quality, novel design and reasonable price.

FAQ:
Q1: All of your products are made by yourself or compacted via purchasing from others?
A1: JASU have independent technical team who focus on making machines and moulds, all the products are made by our technical team.
Q2: What is the ability of your factory?
A2: About injection stretch blow molding machine, we can product more than 30 sets machine per month
Q3: Do you have any technical supports about your products?
A3: We have had long term collaboration with German, and we have a lot of cooperation with a lot of advanced manufacture company on the world.
Q4: Do you have any other service about your products?
A4: We have a lot of experience on making complete "Turn-Key" projects and specifications for our clients. Also we have a fixed service system
Pre-Sales Service
* Inquiry and consulting support.
* Free product design.
* Visit our Factory.
Warranty
* The machine and mold guarantee for one year with repair/ free replacement of defective parts.
* Spare parts of machine components, mold components and tools are shipped along with the machine.
After-Sales Service
* JASU wants to make sure you are getting the very best out of the machine and mold. After delivery, we will send our engineer to your plant to train your staff how to use the machine well, until we get approval by the customer.
* Remote assistance to help you solve problems in case of machine system failure.
Q5: The route to JASU factory
A5: A: Our factory near Line 3 Shiqiao suway station A exist
B: It takes about 15 minutes from Guangzhou South Railway Station to our factory
C: It takes about 50 minutes from Guangzhou airport to our factory

---
