Handwheel Ductile Cast Iron Metal Seated Flange Wedge OS&Y Gate Valve

Product Description

Handwheel Ductile Cast Iron Metal Seated Flange Wedge OS&Y Gate Valve

	Material	Cast Iron
	Standards	EN1171-2002;BS3464
	Pressure	16bar
	Temperature	-29ºC to 438ºC
	Type	NRS Gate Valve
	Size	50-300
	Delivery	45 days for production

DN50-DN300
PN10/PN16/Class 125/Class 150
Valve Standards
Complies with EN1171-2002,BS3464
Working Pressure and Temperature
Size 50 to 300, working pressure 16bar
Temperature from -29ºC to 438ºC
Flange Types
EN1092-2 PN10/PN16,ANSI B16.1 Class 125, JIS7.5K/10K
Face to face
BS3464
Material Specilication

Part Name	Material	EN Spec.	ASTM Spec.
Body	Cast Iron	EN-JL1040	A125 Class B
Body Trim	Bronze	EN1982 CC491K	B62 C83600
	CI Integral	EN-JL1040	A126 Class B
Wedge Trim	Bronze	EN1982 CC491K	B62 C83600
	CI Integral	EN-JL1040	A126 Class B
Wedge	Cast Iron	EN-JL1040	A126 Class B
Wedge Nut	Bronze	EN1982 CC491K	B62 C83600
Stem	Carbon Steel	BS970 050A20	AISI 1020
	Stainless Steel	BS970 420S37	AISI 420
Bonnet	Cast Iron	EN-JL1040	A126 Class B
Gasket	Graphite	Non-asbestos	Non-asbestos
Stuffing Box	Cast Iron	EN-JL1040	A126 Class B
Packing	Graphite	Non-asbestos	Non-asbestos
Handwheel	Cast Iron	EN-JL1040	A126 Class B

Model

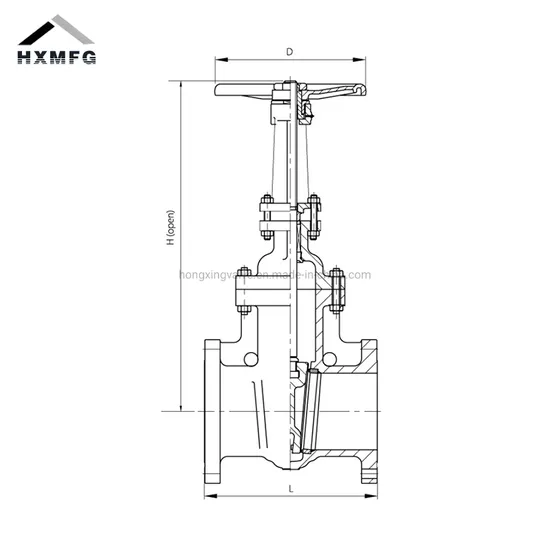

Dimensions(mm)

DN	Size	L	H	D
50	2"	146	380	190
65	2.5"	159	415	190
80	3"	165	462	190
100	4"	172	602	250
125	5"	190	725	305
150	6"	210	830	305
200	8"	241	1065	356
250	10"	273	1228	405
300	12"	305	1352	457

* Over 20 years experience on plumbing and fitting products
* Have been export high quality product to European, Australian, America,South Africa etc.
market for over 15 years.
* Frist-Class Product Testing Machine
* Having passed ISO9001,CE,WRAS,KIWA,ACS,CSTB
* Professional OEM service
* Very familiar with relevant industry standard and product requirement
* Q:Can I get a sample?

A:Yes! Of course.Pls contact us for more details.Some samples will be supplied free but you need pay the freight.
* Q:What's your payment term?
A:Normally "T/T before production " for new client or order value under USD8000. Please contact us for more details.
* Q:What's the lead time?
A:Normally 45 days. It'll be different due to different products and qty
* Q:What's your MOQ?
A:1000pcs for each size.
* Q:Can you offer OEM service?
A:Yes! Of course.Base on our rich experience in this field we can certainly offer OEM service to you.Just tell us your design we'll then try our best.

---
