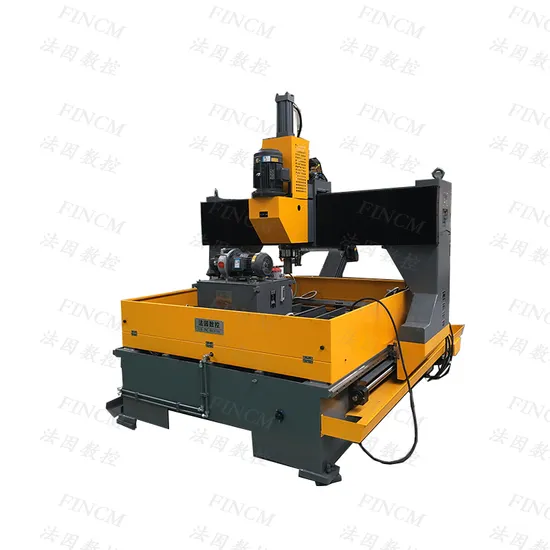

PHD3020 FINCM Steel Structures Gantry Mobile Steel Plate High-SpeedV

US$76,000.00

1-2 Sets

US$75,000.00

3+ Sets

Basic Info.

Model NO.

PHD3020

Structure

Vertical Drilling Machine

Layout

Gantry Move

Controlling Mode

CNC

Number of Shaft

Hole Diameter

<50mm

Automatic Grade

Automatic

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Thickness of Workpiece (mm)

100mm

Width X Length (mm)

3000mm X 2000mm

Quick-Change Drill Chuck

Bt50

Diameter of Drilling Head (mm)

12mm- 50mm

The Mode of Speed Adjustment

Transducer Stepless Speed Adjustment

Rotate Speed (R/Min)

0-2000 R/Min

Stroke(mm)

350mm

Processing Feeding

Hydraulic Stepless Speed Adjustment

Thickness of Clamping(mm)

15-100mm

Quantity of Clamping Cylinder(Piece)

12 Pieces

Clamping Force(Kn)

7.5kN

Start-up Clamping

Foot-Switch

Mode

Forcing Cycle

System Pressure(MPa)

6MPa(60kgf/Cm2)

Volume of Oil Tank(L)

120L

Transport Package

Container

Specification

About 5183X 2705X 2856mm

Trademark

FIN CNC Machine

Origin

Shandong Jinan

HS Code

8459210000

Production Capacity

50 Sets/Year

Product Description

CNC Steel Structure Construction Gantry Movable Steel Plate High Speed Drilling Machines 3000mm*2000mm*100mm
Product Description
Product Parameters

Specification name	Items	Specification valve
Workpiece dimension	Material overlapping thickness	Max. 100mm
	Width×length	3000mm×2000mm one piece
		2000mm×1000mm two pieces
		1000mm×1000mm four pieces
Spindle	Spindle boring	BT50
	drill diameter	Max. Φ50mm
	rotate speed	0-2000r/min
	travel length	350mm
	process feeding	Servo motor driven
Workpiece clamp	clamp thickness	15-100mm
	clamp cylinder number	12
	Clamp force	7.5kN
	Clamp start	Foot switch
Cooling liquid	Recycle design	Forced circulation
Cooling liquid	Cooling mode	Spray cooling
Hydraulic	Clamp pressure	6MPa(60kgf/cm2)
Hydraulic	capacity of tank	About 100L
Air pressure	Air source	0.4MPa(4kgf/cm2)
Motor	Spindle	15kW
	Feeding	2.0kW
	Hydraulic pump	2.2kW
	Cooling pump	0.25kW
	X axle servo system	2.0kW
	Y axle servo system	1.5kW
	Chip conveyor	0.75kW
Machine dimension	L×W×H	About 5500×3550×2900mm
Machine dimension	Weight	About 7000kg
Control axle number	X,Y(Point control),Z(servo feeding)
Travel range	X axle	2000mm
	Y axle	2000mm
	Z axle	350mm

List of Free Accessories to be shipped together with the machine:

NO	Code	Name	Quantity	Remark
1	BT50-40	hilt	1
2	BT50-I	Pull nail	1
3		"O"ring 16×2.4mm	5 pcs
4		"O"ring 11×1.9mm	5 pcs
5		"O"ring 50×3.1mm	1 piece

Key Outsourced Components List:

NO.	Name	Brand	Country
1	Linear guide rail	PMI/HIWIN	Taiwan (China)
2	Hydraulic pump	JustMark	Taiwan (China)
3	Electromagnetic valve	Atos/Yuken	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Applicable Industry
This machine purpose is mainly used for drilling plate workpieces in steel structures such as construction, coaxial, iron tower, etc., and can also be used for drilling tube plates, baffles and circular flanges in boilers, petrochemical industries.
