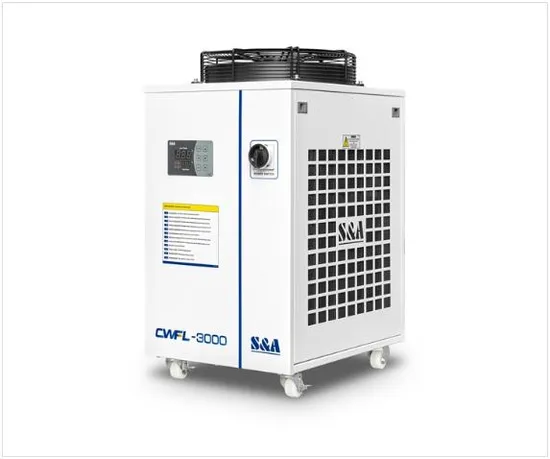

S&a CNC Fiber Laser Chiller Industrial Cwfl-3000bns AC 1p 220V 60Hz

Product Description

Product Description
The special CWFL-3000 fiber laser chiller has two independent cooling cycle waterways, a high-temperature cooling laser head, and a low-temperature cooling laser. It has multiple functions, saving costs and space. CWFL-3000 has two working modes: constant temperature and intelligent temperature regulation.
The intelligent temperature control mode can be adjusted to the corresponding water temperature according to temperature changes, with one click setting, so customers no longer need to worry about adjusting the water temperature during seasonal changes
Technical Parameter

Model	CWFL-3000ANS03	CWFL-3000BNS03
Voltage	AC 1P 220~240V
Frequency	50Hz	60Hz
Current	1.9~16.3A	1.9~16.8A
Max. power consumption	3.27kW	3.42kW
Heater power	600W+1400W
Precision	±0.5ºC
Reducer	Capillary
Pump power	0.4kW
Tank capacity	22L
Inlet and outlet	Rp1/2"+Rp1/2"
Max. pump pressure	40M
Rated flow	1.5L/min + >25L/min
N.W	68Kg	70Kg
G.W	79Kg	82Kg
Dimension	69 X 47 X 90 cm (L X W X H)
Package dimension	73 X 57 X 105 cm (L X W X H)

Product Features
1. Temperature control accuracy reaches ± 0.5 ºC;
2. Environmentally friendly refrigerants can be selected;
3. Support ModBus-485 communication; There are multiple settings and fault display functions;
4. It has multiple alarm protection functions: compressor delay protection; Compressor overcurrent protection; Water flow alarm; Temperature over high/low alarm;
5. Multinational power supply specifications; ISO9001 certification, CE certification, RoHS certification, REACH certification;
6. Stable refrigeration and easy operation;
7. Optional heater and water purification configuration.
Product Application
Metal processing
CNC machinery
Advertising signage
UV printing
Clothing leather
Precision instruments
3C industry
Medical equipment

---
