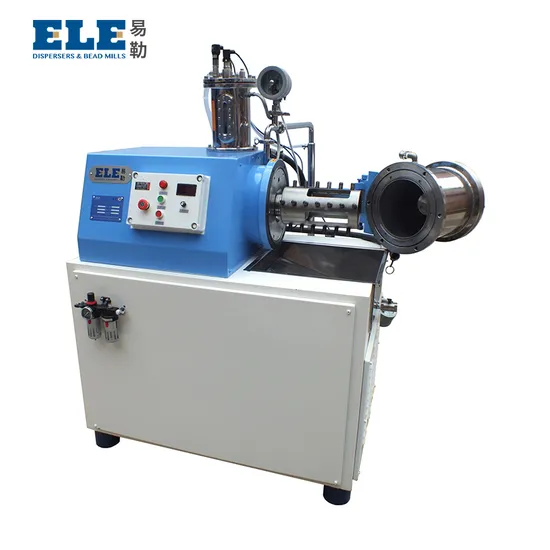

Ele Nano Size Bead Mill Machine for Ink/Paint/Coating

US$2,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
EDW/EBW/ENW
Controlling Mode
Electric Control System
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Ink, Paint, Pigment
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Function
Wet Grinding/ Milling
Grinding Medium
Zirconia Beads
Applicable Industry
Coating, Paint, Ink, Pigment, Latex
Bead Materials
Stainless Steel or Pure Zirconia
Usage
Industrial
Product Type
Horizontal
Material
Hard Alloy/Ss/304/316L/Ceramic
Certifcation
Ce/SGS/ISO
Performance
Nano&Micron Grinding
OEM/ODM
Acceptable
Cooling System
Circulating Liquid Cooling
Self-Protection
Auto-Stop Function
Transport Package
Wooden Case
Specification
EDW-5L----EDW-100L
Trademark
ELE
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
2000

Product Description

Horizontal Bead Mill:
Model No. Chamber Volume(L) Motor Power(KW) Flow(L/H) Dimension(mm) Weight(kgs)
EBW-5 5 7.5 50-200 1200X900X1550 400
EBW-20 20 22 100-300 1850X1050X1750 900
EBW-30 30 30 200-500 2100X1100X1900 1200
EBW-50 50 45 300-800 2300X1350X1700 1800
EBW-100 100 55 500-1500 2500X1400X1800 2500
EBW-200 200 90 1000-2500 4500X1550X1900 3500

Model Volume Of Grinding Tank(L) Power(KW) Rotation Speed (rpm) Capacity(L/H) Dimension(mm) Weight(KG)
EDW-5 5 11 0-1500 200 1300*1050*450 400
EDW-10 15 22 0-1200 300 1600*1450*650 600
EDW-15 20 37 0-1200 500 1600*1450*650 1200
EDW-30 30 55 0-1000 1500 1650*1550*750 2200
EDW-50 50 75 0-860 2000 1900*1850*850 2800
EDW-100 100 110 0-860 3000 2300*2150*950 3800

Model No. Chamber Volume(L) Motor Power(KW) Speed(rpm) Flow(L/H) Dimension(mm) Weight(kgs)
ENW-1.0 1 4 0-3000 2-30 1200X900X1400 260
ENW-5 5 11 0-1500 30-200 1100X850X1600 400
ENW-10 10 22 0-1200 50-300 1400X1100X1750 700
ENW-15 15 37 0-1200 100-500 1550X1100X1800 1300
ENW-30 30 55 0-1000 200-1000 1850X1300X1700 2200
ENW-50 50 75 0-860 500-2000 2200X1500X1800 2800

Features:
1. High abrasive resistance: Materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life.
2. Dynamic fence booms: Discharge solve problems of slow discharge and grinding medium getting stuck.
3. ELE Patent mechanical seal, which can bear more than 10bar pressure.
4. Corrugated cooling system increase cooling area and improve cooling efficiency.
5. Grinding beads small to 0.2mm guarantee superfine grinding/milling.
6. Meet demands of continuous production&different viscosity& fineness.
7. Inner & outer double pins improve high wet grinding/milling efficiency.
8. Ex-proof (optional) & fault alarming.
