ASTM A588 S235j0 CCS Ah36 Dh36 Eh36 Alloy Steel Sheet Hot Rolled Spfc590 10mm Carbon Iron Plates Q235B S275jr S355j2+N S500mc Ms Metal Plate

Product Description

ASTM A588 S235j0 CCS Ah36 Dh36 Eh36 Alloy Steel Sheet Hot Rolled Spfc590 10mm Carbon Iron Plates Q235B S275jr S355j2+N S500mc Ms Metal Plate Product Description
1, Introduction to Ordinary Cold Rolled Sheet
It is a product obtained by cold pressing hot rolled thin plates. Due to multiple passes of cold rolling, its surface quality is superior to that of hot-rolled thin plates, and after heat treatment, good mechanical properties can be obtained.
1. Classification of uses for ordinary cold rolled sheets
According to the different needs of production enterprises, cold rolled sheets are usually divided into:
Generally, cold rolled sheet, stamping grade cold rolled sheet, deep drawing, ultra deep drawing, and ultra deep drawing grade cold rolled sheet are used,
Generally delivered in rolls and flat plates, with thickness expressed in millimeters,
The width is generally 1000mm and 1250mm, and the length is generally 2000mm and 2500mm.
2. Grade of ordinary cold rolled sheet metal
The commonly used brands are:
Q195, Q215, Q235, 08AL, SPCC, SPCD, SPCE, SPCEN, ST12, ST13, ST14, ST15, ST16, DC01, DC03, DC04, DC05, DC06, etc;
ST12
Represented as the most ordinary steel grade, with the same material as Q195, SPCC, and DC01 grades;ST13/14:
Represented as stamping grade steel grade, the material is basically the same as 08AL, SPCD, and DC03/04 grades;ST15/16:
Represented as stamping grade steel grade, the material is basically the same as 08AL, SPCE, SPCEN, and DC05/06 grades.
3. Representation method for grade and size of ordinary cold rolled sheet metal
For example, Ansteel produces ST12, 1 * 1250 * 2500/C, which is represented as: ST12 ordinary cold plate with a thickness of 1mm, a width of 1250mm, and a length of 2500mm or C coil.
The appearance is white iron leather precision packaging, and the mechanical properties are the most ordinary and basic steel grade. It can only be used for bending forming and cannot be used for stamping. Used for mechanical biting,
For example, the outer shell of a refrigerator, vehicle fuel tank, etc.
ST13 or above products are used in industries that require deep drawing, such as automotive manufacturing, diesel fuel tanks, etc. The specific type to be used depends on the drawing requirements.
The difference between ST12 and SPCC: The mechanical properties of the two products are almost the same, but the annealing method is different. The tensile performance of products made of ST12 material is relatively stronger than that of SPCC.

ITEM	ASTM A36 ISO Certificate AH36 DH36 EH36 Ship Building Steel Sheet Hot Rolled SPFC590 10mm 20mm Carbon Steel Plate Q235B S275JR S355J2+N S500MC Ms Metal Sheet
STANDARD	ASTM A285, ASTM A283, SA516, SA517, EN10025-2-2004, ASTM A572, ASTM A529,ASTM A573, ASTM A633, JIS G3101-2004, ASTM A678 ASTM A588, ASTM A242,etc
MATERIAL	A36,SS400,A283 Gr.A,.Gr.B.Gr.C,A285 Gr.A,.Gr.B.Gr.C,Q235,Q195,Q215,S185,SM400, S235J0,S235JR,S235J2,Q275,Gr50,GR55,GR.65,GR.A,S275JR,S275J0,E295,SS490 SS540,GR.60,GR.70,S355J0,SM570,E335,S235J2W,Q355,SMA490,S355J2W,Q265,P235GH,SB410,SPV235,SGV410,SG255,P265GH,SB450,SG295,P295GH,etc
SIZE	Thickness:6.0-40Black painted,PE coated,Galvanized ,etc0mm Width:1250mm,1500mm,1800mm,2000mm,2200mm,2500mm,etc Length:1000mm,1500mm,2000mm,2438mm,3000mm,6000mm,8000mm,10000mm, 12000mm,etc
SURFACE	Mill surface black sliver bright surface
EXPORT TO	Poland ,India,Dubai,Peru,Saudi Arabia,Indonesia,Singapore,Korea,Viet Nam,Thailand,Brazil, Ukraine,Canada,South Korea,South Africa and so on.
APPLICATION	Steel plates are widly used as boiler plate, container plate, flange plate and ship plate, andwidly used in building construction. The size of steel plate can be made according toclients requirements.

Standard	Grade	General Size	Delivery Condition
ASTM A36	A36/A36-B	5-20 * 2300-2500 * C	Boron added or Black Condition
ASTM A283	A283-B/A283C	5-20 * 2300-2500 * C	Boron added or Black Condition
ASTM A572	A572Gr50-B/A572Gr42-B	5-20 * 2300-2500 * C	Boron added or Black Condition
ASTM A515	A515Gr70	5-20 * 2300-2500 * C	Boron added or Black Condition
ASTM A516	A516Gr70	5-20 * 2300-2500 * C	Boron added or Black Condition
JIS G 3101	SS400-B	5-20 * 2300-2500 * C	Boron added or Black Condition
JIS G3136	SN400B	5-20 * 2300-2500 * C	Boron added or Black Condition
EN10025-2:2004	S235JR-S355K2+N	5-20 * 2300-2500 * C	Boron added or Black Condition
EN10025-5:2004	S355J2W/S355K2W	5-20 * 2300-2500 * C	Boron added or Black Condition

Grade	Rank	Chemical Composition( %)
		C	Mn	Si	S	P
Q195		0.06~0.12	0.25~0.50	≤0.3	≤0.05	≤0.045
Q215	A	0.09~0.15	0.25~0.55	≤0.3	≤0.05	≤0.045
	B				≤0.045
Q235	A	0.14~0.22	0.30~0.65	≤0.3	≤0.05	≤0.045
	B	0.12~0.20	0.30~0.70		≤0.045
	C	≤0.18	0.35~0.80	-	≤0.04	≤0.04
	D	≤0.17			≤0.035	≤0.035
Q255	A	0.18~0.28	0.40~0.70	≤0.3	≤0.05	≤0.045
	B				≤0.045
Q275		0.28~0.38	0.50~0.80	≤0.35	≤0.05	≤0.045

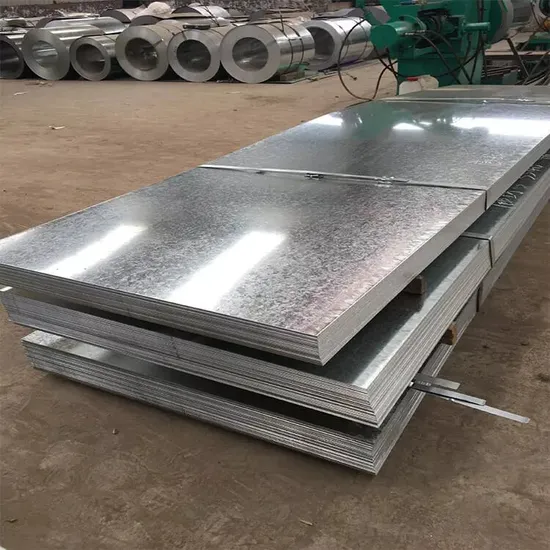

Detailed Photos
Product Application
For ship building To prevent the hull from being corroded by chemical corrosion, electrochemical corrosion and sea life and microorganisms.It is used in make ship body ,decks etc. Such as A36. Carbon steel plate can be used as factory equipment manufacturing Customer Feedback
Certifications
Quality Inspection
All our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Packaging & Shipping

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM,27MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM,27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM,27MTS


FAQ
Q1 :What can be provided ?
1. Sample can be ordered.
2. We have full stock, and products can be delivered within 14 days. Multiple styles for your choices.3. OEM and ODM order are accepted. Any kind of logo printing or design are available.
4. We are strong at Good Quality /Factory Price / Quick Response / Reliable Service.
5. All of our products are produced by professions and we have our high-work-effect foreign trade team, you can totally trust us.Q2:How do you guarantee your quality?
1. We have 6 ex-factory inspection procedures.
2. For each batch of products, 22 people participate in the quality inspection during the whole process of material, size, surface treatment, packaging, etc.
3. Ensure that the factory products are 100% qualified.Q3: How long does your delivery time take?1. Spot delivery can be arranged immediately.
2. The fastest delivery time can be communicated according to your order details.Q4: What are your advantages?1. Competitive price and quality from our own factory
2. Approved by ISO9001, CE, SGS every year
3. Best service within 24 hours reply
4. Flexible payment with T/T,L/C and etc.
5. Smooth production ability(5000 tons/month)
6. Quick delivery and standard exporting packageQ5:Has the product got quality inspection before loading?Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint the third parties to inspect the products before loading.

---
