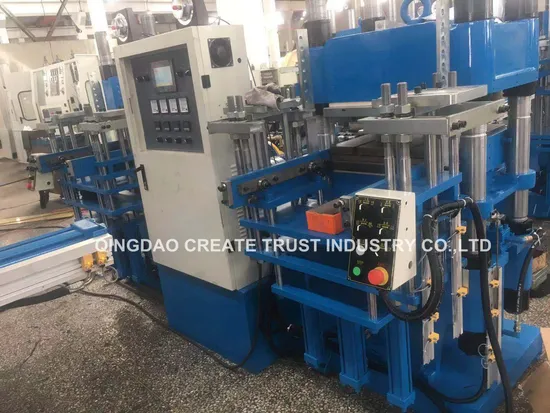

High Quality Rubber Plate Vulcanizing Press with PLC Siemens Control System

Product Description

1- Model No.: CX100C
2- Name : Plate vulcanizing press, Rubber moulding press, Rubber press machine, Rubber vulcanizing machine, Rubber vulcanizing pres,Rubber curing press,Plate vulcanizing press,Plate vulcanizing machine,Rubber hydraulic press.
3- Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
4- FEATURES
Material of steel plate:
We use hight quality carbon steel Q-235C ,thickness is 90 mm, other supplier is only 80 mm,,after mirror polishing,and chrome plated. This make plate very strong.

Material of plunger :
Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.

Hydraulic system:
the professional hydraulic components, stable and reliable and quality . We use famous brand "Tainwan KLC" .Pressure sensor control system pressure and never off pressure.

Electronic control system (PLC):
Electrical components use "Mitsubishi "brand,automatic switching mode,with auto rising,auto-fill pressure,curing time alarm functions.

Emergency stop button:
When emergency happens,just press the emergency stop button,the machine will stop immediately.
Our vulcanizing press is equiped with automatic controling temperature and pressure, automatic alarm ,digital readout and son on.
Other electric parts are from SIMENS.

5- Main technical data:

Model CX-Y630 CX-Y1000B CX-Y1000A CX-Y1600 CX-Y2000 CX-Y2500 CX-Y3500 Mold-locking force(KN) 630 1000 1000 1600 2000 2500 3500 Max. working pressure(Mpa) 21 21 21 23 21 21 23 Block stroke(mm) 300 300 300 300 300 400 500 hermo-plate size(mm) Electricity hot plate emigration 360*400 450*450 500*500 520×540 600×600 700×750 1050×1000 pinban/liangan 360*400 450*450 500×500 500×540 550×600 680×750 980×1000 Max.distance of thermo-plate(mm) 300 300-480 300-480 300-480 300-480 400 500 Motor power(kw) 4 4+2.2 4+2.2 4+2.2 5.5+3 5.5+3 5.5+5.5

Notel Abote data are subject to change without notice.

Service of us:
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !

---
