Elegant Stylist Space-Saving Wallmount Touchscreen Kiosk with 19"-21 Portrait Display

Product Description

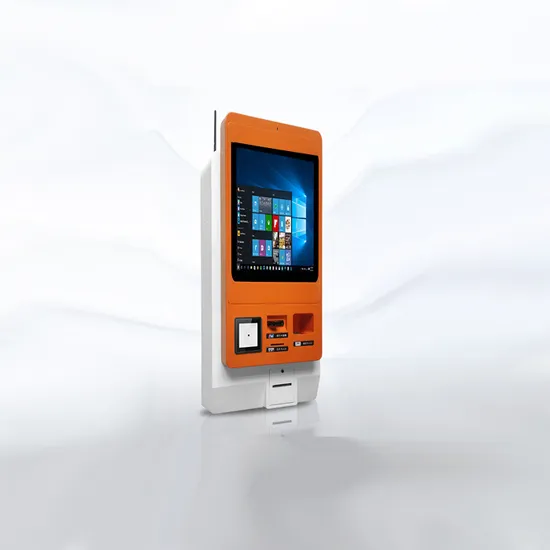

KINGLEADER's TSK2014WM, is a new, elegant, space -saving wallmount kiosk with a 19"~21" IR touchscreen and a portrait display.
Due to its unique design,it is easy to integrate it with other peripherals(thermal printer,keypad,IC cardreader, NFC /RFID cardreader etc) based on the need of customers /end-users.
It is widely used in convenience store,drug store,coffee shop,restaurant or other places where information and/ortransaction are provided in self-service and interactive manner but floor space is at a premium.

Items	Specifications
Key Feature	- 11" ~21" portrait screen(16:9) - High-sensitivity,high light-transmittance,anti-glare,vandal-proof Infra-red touchscreen - Durable steel enclosure,stylish and floor space-saving design - Built-in hi-fi amplified speakers - Easy to integrate it with other peripherals such as thermal printer,keypad,IC cardreader,NFC/RFID cardreader,QR code scanner etc - Typical pplications: convenience store,drug store,coffee shop,restaurant or other places where information and/or transaction are provided in self-service and interactive manner but floor space is at a premium.
LCD Display	- Resolution: 1920x1080 - Brightness: 500 nits - Contrast ratio: 1000:1 - Response time :5 ms
Touchscreen	- Vandal-proof IR touch screen - Material: Heat tempered glass - Resolution: 4096*4096 - Deviation of error: <2mm - Light Transmittance: ≥ 92% - Surface Hardness: 7 Mohs scale - Lifetime:50,000,000 times at one single location - Response time: less than 8 ms
Enclosure	- Durable steel enclosure (different colors for option) - Built-in power control panel, and hi-fi speakers. - Two cooling fans for computer board and main body separately - RJ45/RJ11 interface - Large access doors with tubular locks/keys
Computer	- Industrial mother board - CPU:Intel Celeron J1900 Quad-core 2.0G(or custom) - RAM: 4GB/8GB - Hard Disc: 500GB(or custom) - Integrated sound/network/graphics card - Interface: 8×USB2.0; 1×VGA; 2xPS/2; 1 x COMM;1x RJ45 - LAN port - WIFI(optional)
Compatible Operation System	-LINUX/Win3.X/98/2000/NT4.0/XP/Win7/8/10
Working Voltage	-AC 220V,50 Hz or 110V,60 Hz for option
Ambient Environment	- WorkingTemperature -20ºC~65ºC;RelativeHumidity: 30%~90% - Storage Temperature: -40ºC~80ºC;Relative Humidity: 5%~95%
Certification	-CE,FCC
Dimension	Depended on the size of screen and peripherals to be integrated
Weight	Depended on the size of screen and peripherals to be integrated
Optional Peripherals	Thermal printer(58mm or 80mm),QR code scanner,IC card reader,NFC/RFID card reader etc

Company Information:
KINGLEADER is an ISO9001:2015 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.
Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.
Why us?
1,ISO9001:2015 certification
2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3,Reasonable price and fast response
4,Over 20 years of experience in rugged input device and touchscreen kiosk
5,OEM and ODM capability
6,Flexibility in customization and size of order
7,Trusted suppliers of many world-class famous brands in the industry

---
