High-Quality, Red Mpp Metallized Polypropyene Film Capacitor for Reliable Performance

Product Description

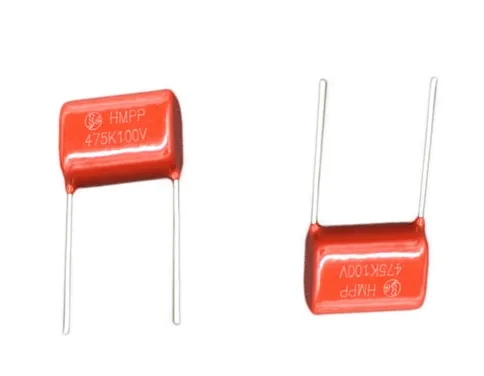

High-Quality, Red Mpp Metallized Polypropyene Film Capacitor for for Reliable Performance*
Product Description Features
1. Metallized polypropylene structure
2. Low loss at high frequency
3. Small inherent temperature rise
4. Flame retardant epoxy resin powder coating (UL94 V-0)

Typical Applications
1.Widely used in high frequency , DC,AC and pulse circuits2.Providing optimum performance with small size in S-correction circuits for colour TV set3.Specially designed for S-correction circuits of large screen monitor and colour TV4.Suitable for the situation where applies high frequency and high current pulse
Specifications

Reference Standard:	GB/T 14579 (IEC 60384-17)
Climatic Category :	45/105/21
Rated Temperature:	85ºC
Operating Temperature Range:	-40ºC~105ºC +85ºCto+105ºC:decreasing factor 1.25% per ºC for UR)
Rated Voltage:	100V,250V,400V,630V,1000V,1250V
Capacitance Range:	0.0010μF~3.3μF
Capacitance Tolerance:	±5%(J),±10%(K),±20%(M)
Voltage Proof:	1.6UR(5S)
Dissipation Factor:	≤10*10-4(1KHz,20ºC)
Insulation Resistance:	≥100 000MΩ, CN≤0.33μF ≥30 000S, CN>0.33μF (20ºC,100V,1min)

Outline Drawing
Dimensions(mm)

Rated Cap.	100VDC					200/250VDC					400VDC					630VDC
	W	H	T	P	d	W	H	T	P	d	W	H	T	P	d	W	H	T	P	d
	max	max	max	±1.0	±0.05	max	max	max	±1.0	±0.05	max	max	max	±1.0	±0.05	max	max	max	±1.0	±0.05
4700pF																13.0	9.0	5.0	10.0	0.6
5600pF																13.0	9.5	5.0	10.0	0.6
6800pF																13.0	10.0	5.0	10.0	0.6
8200pF																13.0	11.0	5.5	10.0	0.6
0.010uF						10.5	9.5	5.5	7.5	0.6	10.5	10.0	5.5	7.5	0.6	13.0	11.5	6.0	10.0	0.6
0.012uF						10.5	10.0	5.5	7.5	0.6	10.5	10.5	6.0	7.5	0.6	13.0	12.0	6.5	10.0	0.6
0.015uF						10.5	10.5	5.5	7.5	0.6	10.5	11.0	6.5	7.5	0.6	13.0	12.5	7.0	10.0	0.6
0.018uF						10.5	10.5	5.5	7.5	0.6	10.5	11.5	7.0	7.5	0.6	13.0	13.0	7.5	10.0	0.6
0.022uF	10.5	9.0	5.5	7.5	0.6	10.5	10.5	6.0	7.5	0.6	10.5	12.0	8.0	7.5	0.6	13.0	13.5	8.0	10.0	0.6
0.027uF	10.5	9.0	5.5	7.5	0.6	10.5	11.0	6.5	7.5	0.6	13.0	12.0	6.5	10.0	0.6	13.0	14.0	8.5	10.0	0.6
0.033uF	10.5	9.0	5.5	7.5	0.6	10.5	11.5	7.0	7.5	0.6	13.0	12.5	6.5	10.0	0.6	18.0	13.5	7.5	15.0	0.6
0.039uF	10.5	9.5	5.5	7.5	0.6	10.5	12.0	7.5	7.5	0.6	13.0	13.0	7.5	10.0	0.6	18.0	14.0	8.0	15.0	0.6
0.047uF	10.5	9.5	5.5	7.5	0.6	10.5	12.5	8.0	7.5	0.6	13.0	13.5	8.0	10.0	0.6	18.0	14.5	8.0	15.0	0.8
0.056uF	10.5	10.0	6.0	7.5	0.6	13.0	12.0	7.0	10.0	0.6	13.0	14.5	8.5	10.0	0.6	18.0	15.0	8.5	15.0	0.8
0.068uF	10.5	10.0	6.5	7.5	0.6	13.0	12.5	7.5	10.0	0.6	18.0	14.0	7.0	15.0	0.6	24.0	16.0	8.5	20.0	0.8
0.082uF	10.5	11.0	6.5	7.5	0.6	13.0	13.5	8.0	10.0	0.6	18.0	14.5	7.5	15.0	0.6	24.0	17.0	9.5	20.0	0.8
0.10uF	10.5	12.0	7.0	7.5	0.6	13.0	14.5	8.0	10.0	0.6	18.0	15.0	8.0	15.0	0.8	24.0	17.5	10.0	20.0	0.8
0.12uF	10.5	12.5	7.5	7.5	0.6	13.0	15.0	8.5	10.0	0.6	18.0	15.5	8.5	15.0	0.8	24.0	18.5	11.0	20.0	0.8
0.15uF	13.0	12.0	7.0	10.0	0.6	18.0	13.5	7.0	15.0	0.6	18.0	16.0	9.0	15.0	0.8	24.0	19.0	12.0	20.0	0.8
0.18uF	13.0	12.5	7.0	10.0	0.6	18.0	14.0	7.5	15.0	0.8	24.0	14.5	8.5	20.0	0.8	24.0	20.0	12.5	20.0	0.8
0.22uF	13.0	13.0	7.5	10.0	0.6	18.0	14.5	8.0	15.0	0.8	24.0	15.0	9.5	20.0	0.8	30.0	21.5	11.0	25.0	0.8
0.27uF	13.0	13.5	8.0	10.0	0.6	18.0	15.0	8.5	15.0	0.8	24.0	15.5	10.0	20.0	0.8	30.0	23.0	12.5	25.0	0.8
0.33uF	18.0	13.0	7.5	15.0	0.8	18.0	15.5	9.0	15.0	0.8	24.0	16.0	10.5	20.0	0.8	30.0	24.0	13.5	25.0	0.8
0.39uF	18.0	13.5	8.0	15.0	0.8	24.0	15.5	8.5	20.0	0.8	24.0	16.5	11.0	20.0	0.8	36.0	24.5	13.5	30.0	0.8
0.47uF	18.0	14.0	8.5	15.0	0.8	24.0	16.0	9.0	20.0	0.8	24.0	17.0	11.5	20.0	0.8	36.0	24.5	14.0	30.0	0.8
0.56uF	18.0	16.0	9.0	15.0	0.8	24.0	16.5	9.5	20.0	0.8	30.0	22.0	12.0	25.0	0.8
0.68uF	18.0	16.5	10.0	15.0	0.8	24.0	17.0	10.5	20.0	0.8	30.0	23.5	13.0	25.0	0.8
0.82uF	18.0	17.5	10.5	15.0	0.8	24.0	18.0	11.0	20.0	0.8	30.0	24.0	13.5	25.0	0.8
1.0uF	24.0	18.0	11.0	20.0	0.8	24.0	19.0	12.0	20.0	0.8	30.0	25.0	14.0	25.0	0.8
1.2uF	24.0	19.5	10.5	20.0	0.8	30.0	22.0	12.0	25.0	0.8
1.5uF	24.0	19.5	11.0	20.0	0.8	30.0	23.0	13.0	25.0	0.8
1.8uF	24.0	20.5	11.5	20.0	0.8	30.0	24.0	13.5	25.0	0.8
2.2uF	24.0	21.0	12.5	20.0	0.8	30.0	25.5	14.0	25.0	0.8
2.7uF	30.0	22.0	13.0	25.0	0.8	30.0	27.0	16.0	25.0	0.8
3.3uF	30.0	22.5	14.5	25.0	0.8	30.0	28.5	18.0	25.0	0.8
For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability. For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability.
