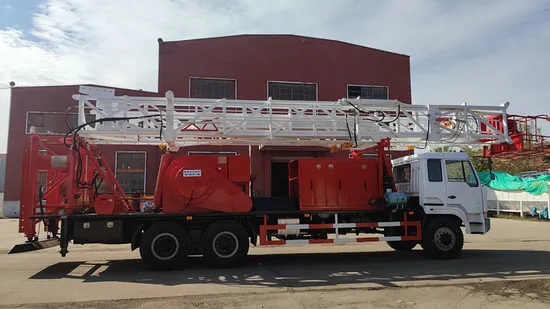

Hot Sale Xj350 Truck Mount Drilling Rig

Product Description

XJ350 Drilling & Workover Rig features fast moving speed and high service efficiency. Equipped with Allison 4700 transmission, the XJ350 workover rig can reach up to 4,000m for workover and well service. The rig is rated by customer all over the world as the best economic workover rig for its reliable performance, innovative design and economical cost.

Description	XJ350 Workover Rig (Overhaul)		XJ350 Workover Rig (Servicing)
Workover Depth	3,200m (10,500ft, 2-7/8″DP)2,500m (8,200ft, 3-1/2″DP)
Servicing Depth	4,000m (13,120ft, 2-7/8″EUE Tubing)
Rated Hook Load	600kN (134,900 lbf)
Max. Hook Load	900kN (202,330 lbf)
Traveling System	3×4 {Φ26mm (1'') Wireline}
Hook Hoisting Speed	0.25~1.4m/s (0.82~4.6ft/s)
Overall Dimensions(l×w×h)	18.5×2.9×4.2m60.7ft×9.5ft×13.8 ft	18.5×2.85×4.2m60.7×9.4×13.8ft
Total Weight	51,000kg (112,440 lb)	49,500kg (109,130 lb)
Speed	45km/h (28mil/h)
Carrier	Self-propeller 10×8
Transmission	Allison 4700 OFS	Allison M5610s
Max. Static Load	900kN (202,330 lbf)
Racking Board Capacity	4,000m (13,120 ft, 2-7/8″EUE Tubing)
Racking board Height	16.8m (55 ft)
Drawwork Rated Power	224kW (300hp, Double drum)	238kW (320hp)
Main Drum	Φ406×890mm (Φ16″×35'')	Φ429×965mm (Φ16.9″×38'')
Max. Faster Line Pull	180kN (40,470 lbf )
Sanding Drum	Φ965×264mm (Φ38″×10.4'')
Air Assist Brake System	KOBELT Disc4-7-35″ Caliper 5026-CM	KOBELT Disc4-7-48″ Caliper 5026-CM
Drill Floor (l×w×h)	4.2×4.2×3.7m (13.8×13.8×12.1 ft)
Swivel Model and Max. Load	SL90 900kN (202,330 lbf)
ZP125 Rotary Table	Max. Load 900 kN (202, 330 lbf Max. Open Dia. 292mm (11.5")

Shandong Beyond Petroleum Equipment Co., Ltd, hereinafter referred to as "Beyond", was established in year 2016 and certified by ISO9001. Its main business scope is to supply drilling equipment and spares for overseas customers from different sectors, like petroleum, water well, construction and HDD.
Beyond products cover but not limited to: oil drilling & workover rig, water well drilling rig, pile drilling rig, horizontal directional drilling rig, mud pump and spares, solid control system & equipment, and other different drilling materials. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can customize the product supply as per your on-site conditions, and we can offer overseas after-sale services with our strong technical support. Thanks to our professional services, quality products, fast delivery and competitive prices, we have built up a very good reputation among our customers. Our products had covered countries like USA, Venezuela, Argentina, India, Singapore, Kazakhstan, Azerbaijan, Egypt and Ethiopia.
With "Professional & Efficient, Customer Focus, Win-win Cooperation" as its business principle, Beyond believes we will become your trustable and reliable partner in China. We warmly welcome you to be our customers to establish good cooperation and create a bright future with us together. Choose Beyond, You will get beyond your expectations and we will not let you down.

---
