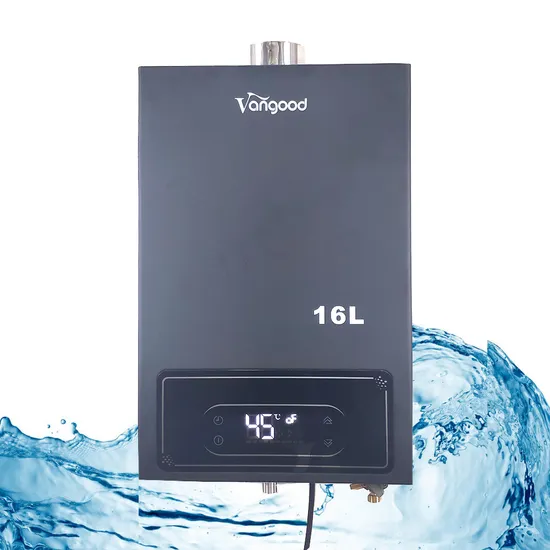

Forced Exhuast 16L Balanced Gayser Turbo Indoor Tankless Gas Water Heater

Product Description

Technical Data
Model		Unit	JSG30-16LW
Gas Type			Natural gas/LGP
Rated Gas Pressure		Pa	2000/3000
Rated Heat Input		kW	30
Efficiency Under Rated Heat Input		%	>83%
Power Supply		/	220V,50HZ or 110V,60HZ
Electric Power		W	35
Electricity And Water Protection Grade		/	IPX4
DHW	△T=25ºC Hot Water Supply	kg/min	16
	△T=30ºC Hot Water Supply	kg/min	13.3
	Temp.Range Of Shower Water Supply	ºC	30~55
	Application water pressure	Mpa	0.025~1.0
	The Minimum Starting Flow	L/min	2
	The Minimum Closed Flow	L/min	1.6
Pipe Joint	Gas Input	Inch	G1/2
	Connection For Heating Water Pipes	Inch	G1/2
	Connection For Shower Water Pipes	Inch	G1/2
	Flue	mm	¢60 for exhausting,¢100 inlet
The Length Of Flue Duct		m	1
Noise On Working		DB	<60
Exhaust type		/	Forced exhaust
Ignition type		/	Continuous electronic ignition
Temperature control		/	Gas proportional adjustment
Product Dimensions		mm	590*380*160
Packing Dimensions		mm	740*470*230
Weight		N.W. (kg)	12.5
		G.W. (kg)	14.5
Container Qty (20GP/40HQ)		PC	290 / 710

- Gas type: Natural gas or LPG
- Gas pressure: 20 mbar / 28-30mbar
- Power: 30 KW
- Connection: 220-240 Volt
- Max. power consumption: 45 Watt
- Size: 590x380x160 mm
- Minimum water pressure: 0,2 bar
- Maximum water pressure: 8 bar
- Water flow: between 3 and 16 liters per minute
- Temperature range: 35 to 65 degrees
- Connection flue gas discharge: 60/100 mm
- Weight: 14.5 kg.
- Power cord with plug included
What is the feature of the intdoor gas water heater? This is the safest type of gas water heaters available in the market. The fresh air inlet comes from outside and the exhaust gasses are pushed outside. This makes it possible to mount the water heater in any (bath-) room without restrictions. The temperature is controlled by thermostats. Automatic safety controls are fitted to the water heater to provide safe and efficient operation. How is the product quality, and what warranty can be provided?
1. Production based on the standard of ISO9001 & ISO14001;
2. Provide 1% quantity easy broken spare parts and 1 year warranty;
3. If defect of device is caused by our quality, we can replace it;
4. 10 years manufacture & export experience that we know what you want.
Zhongshan Vangood Appliances MFG Co., Ltd. is sitting on the best gas appliance resources in Zhongshan, providing our global customers with high-quality and punctual products and better services.
1.+15 years home appliance developing and producing experiences.
2. We are I S O 9 0 0 1 certified and have a strict quality system from raw materials, inspection at each production process, final inspection and acceptance of the finished products.
3. our products are exported to clients in such countries and regions as North and South America, Europe, Russia, Africa.
4. We provide one- station service, from the product design, parts selection to the final finished product, both OEM and ODM orders are welcome.
5. There are 3 main series we produce now: gas and electric water heaters parts, boilers parts and so on.
Q: Are you trading company or manufacturer ? A: We are factory, located at Dongfeng Town, Zhongshan City, China. Welcome your visit anytime! Q: How long is your delivery time? A: For 1st order, it is 35-45 days. For Repeat order, it is 25-35 days. Q: Do you provide samples ? is it free or extra ? A: Yes, we provide samples by 1.5 times of unit price. And, this sample fee will be rebate to you during 1st mass production order. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment, or 100% LC at sight. Q: What is your major product? A: Our major product is Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances. Q: Can you do SKD or CKD? A: Yes, we can. We have been in cooperation with SKD/CKD customers from Vietnam, Pakistan, India, Brazil, Mexico, Turkey. The SKD/CKD format is customized.

---
