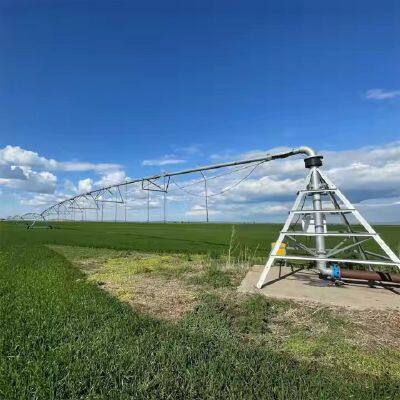

Center Pivot Irrigation Machine Electricity Center Pivot Translation Sprinkler Irrigation System
Main pipe
| Dia: 6-5/8" (168mm),Thickness:3.2mm, Length: 6.7m or 13.4m
|
Span
| 54.5m, 61.3m, 47.9m
|
Overhang
| Dia: 5-9/16"(141mm) for the first 13.4m, 4" for the last 13.4m;
Overhang Length：3.5m,6.7m,10m, 13.4m, 16.8m, 20.1m, 26.8m
|
Collector ring
| Mounted externally around the pivot elbow
|
Flange thickness
| 10mm
|
Angles for to pivot legs
| 100mm*100mm*8mm
|
Angles for tower legs
| 100mm*80mm*8mm
|
Angles for the truss
| 50mm*50mm*5mm
|
Truss rod
| Dia: 22mm
|
Working electricity
| 460--380V/50--60HZ
|
Power supply
| Public power or the generator set
|
Electrical cable
| Amoured, UV-resistant
|
Motor
| Output: 0.75/0.6HP Volts: 460/380 Herz:60/50 RPM: 43/36,
|
Gearbox
| Ratio: 50:1, from UMC factory in China
|
Tire
| 14.9-24 irrigation tire
|
Sprinkler
| I-wob, option: D3000, R3000 etc.
|
Pressure regulator
| 15psi
|
Sprinkler spancing
| 2.2m or 4.4m
|
End light
| LED
|
anti-corrosion
| Hot-dip galvanization, option: poly lined
|
Maintenance ladder on the central tower
| Available
|
Emergency protection if one of the carts moves faster than neighbouring ones
| Available
|
Emergency protection in case of electrical fault (short circuit)
| Available
|
Standard control panel functions
| Main power switch (Disconnect switch)
|
|
|
|
|
|
|
