Vacuum Homogenization Emulsification Unit (Emulsification Machine)

US$7,600.00-15,000.00 1 set (MOQ)

Basic Info.

Model NO.

ZJR-50

Application

Liquid with Suspended Solids, Powder

Application Area

Chemical, Food, Pharmaceutical

Certification

CE, ISO, GMP

Condition

New

Control System

Button Control

Cooling Method

Water Cooling

Heating Method

Electric Heating

Main Material

Stainless Steel

Mixing Capacity

50-99L

Mixing Drum Shape

Double Cone

Speed Control

Single Speed

Speed Range

< 30 R/min

Stirring Type

Forced

Temperature Control

With Heating

Working

High Speed Mixer

Type

Preparation Machinery

Precision

High Precision

Customized

Finished Dosage Form

Cream, Ointment

Voltage

Customized

Name

Vacuum Homogenization Emulsification Unit

Transport Package

Wooden Case

Specification

ISO GMP

Trademark

SUPM

Origin

China

Production Capacity

500sets/Year

Packaging & Delivery

Package Size

1450.00cm * 1150.00cm * 1900.00cm

Package Gross Weight

700.000kg

Product Description

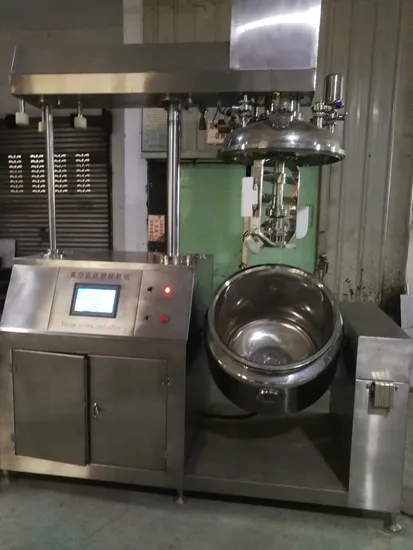

Vacuum Homogenization Emulsification Unit (Emulsification Machine)The equipment is widely used for emulsification of the pharmaceuticals, cosmetic, fine chemical products, especially the material having high matrix viscosity and solid. It works by homogenizer, fixed stirrer, scrapers residues stirrer.
Composition:
ZJR Vacuum Emulsifying Mixer Series is composed of emulsification boiler(fluctuating cover, overturn kettle form or outside circle form), water tank, oil tank, vacuum pump system, heating and temperature control systems, cooling systems, electric machinery control systems. Etc.
It can make various facial cream, lotion, shower, cream, ointment, shampoo, paste, gel, honey, meat, milk, sauce etc.
Technical parameters:

Machine Name		ZJR-50L emulsifying machine
Homogenizing kettle		Designed capacity:65L Working capacity:50L Min working capacity:15L
Material		Contact material:Stainless steel 316L thickness:4mm
		Interlayer material:stainless steel 304 thickness: 4mm
		Body:stainless steel 304 thickness: 3mm
Homogenizing way		Upper
		Homogenizing power: 1.5 kw
		Homogenizing speed: 3500 rpm
Mix way		Frame type scraping/mixing and fixed oar
		Mix power: 0.75 kw
		Mix speed: 0~86 rpm
Cover opening way		Electric lifting
Heating way		interlayer steam heating
Material discharging way		Tilt and bottom valve discharging way
Parameter		Working pressure inside:-0.09Mpa Interlayer working pressure: 0.3Mpa

Water boiler	Designed capacity:40L Working capacity:32L
Mix way	Disperse tray
	Mixing power: 0.55kw
	Speed: 1400 rpm
Cover opening way	Active way
Temperature display	Numeral
Material discharging way	Bottom discharging way
Material	Contact material: stainless steel 316L thickness:4mm
	Interlayer material: stainless steel 304 thickness:4mm
	Body: stainless steel 304 thickness: 3mm

Oil boiler	Designed capacity:30L Working capacity:24L
Mix way	Disperse tray
	Mixing power: 0.55kw
	Speed: 1400 rpm
Cover opening way	Active way
Temperature display	Numeral
Material discharging	Bottom discharging way
Material	Contact material: stainless steel 316L thickness:4mm
	Interlayer material: stainless steel 304 thickness:4mm
	Body: stainless steel 304 thickness: 3mm
Machine weight	700kg
Dimension	1450mm×1150mm×1900-2400 mm
Spare parts	Spare parts for 1 year
Guarantee	1 year
Commissioning	By seller
Working life	More than 10 years
