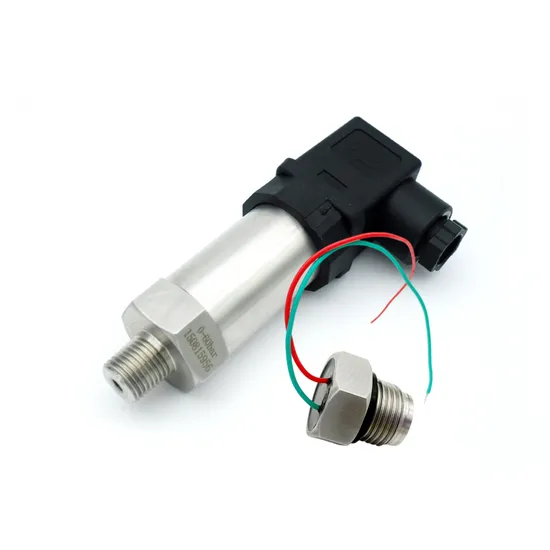

Atech Silicon Pressure Sensor PT201 Silicon Economical Pressure Transmitter

Product Description

Product Description PT201 series of pressure transmitter is a standard and most popular transmitter applied in air and liquid pressure measuing are cost effective products featuring mass production and low cost.
The products are made of stainless steel. the pressure sensing elements chips are selected from well-known international brands. Special circuits are adopted to zero and full range conveniently. The products are approved with CE, intrinsically safe, and explosion proof certificates. Customized structures and output formats can be designed according to special application requirements .

pressure medium	gas liquid compatible stainless steel
pressure ranges	0~2...1000bar
overload pressure	300%FS
output signal	4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA
accuracy	0.5%FS (standard) 0.25%FS 0.1%FS
load resistance	RL = (U-10)/0.02(Ω) (4~20mA current output), >20KΩ (voltage output)
long term stability	<0.25%FS/year
supply voltage	10~30V
compensated temperature range	-10~70°c
operating temperature range	-40~+120°c
storage temperature range	-40~+140°c
temperature coefficient of zero	0.3%FS/10°c
temperature coefficient of span	0.3%FS/10°c
insulation resistance	>100MΩ@ 50VDC
process connection	G1/4 or others
electrical connection	DIN 43650 or others
material of wetted part	1Cr18Ni9Ti
material of pressure membrane	316L
material of housing	1Cr18Ni9Ti
weight	180g

Contact us for more product information

Product Display
Our Advantages
How to proceed an order?
1. Let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer places payment for formal order.
4. We arrange the production.
Glad to answer your questions,Contact me FAQ 1.Q: How long is the delivery?
-- Mostly within 10days
2.Q:Can I get a sample?
-- Sure, contact our sales please
3.Q:What is your MOQ?
-- 1pcs
4.Q: How about warranty time?
-- 12-18months
5.Q: How can I visit your factory?
-- Fly to Xi'an air port, it's our pleasure to pick you up.
6.Q:How do you control your quality ?
-- We have EPR system .we control from parts, process, testing, packing ,retesting. 7.Q: Do you have test report for each product? -- Yes,we have test report for each product. 8.Q: Can you customize product for us according to our required specifications? -- Yes,we are OEM manufacturer,we could customize products according to your required specifications. Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.Welcome to order our products

---
