1200KG Kubota Engine 1.2 Ton Mini Excavator in Stock CE Marked Digger with Closed Cabin

Product Description

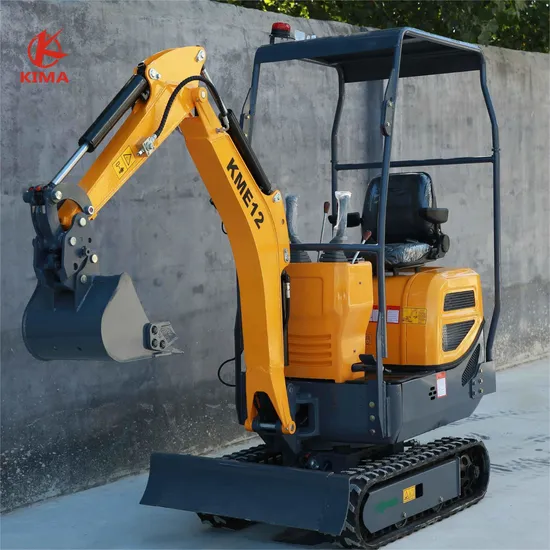

KME12 Mini Excavator
Excavator engine:YANMAR Excavator dimension:3060x850x2250mm
Excavator weight:1220KGS
Excavator Bucket capacity:0.03m³
Description

KME12
Type of cab		Canopy
Bucket capacity		m3	0.03
Bucket width, std.		mm	400
Machine weight		kg	1220
Dimensions	Overall length	mm	3060
	Overall height	mm	2250
	Overall width	mm	850
	Ground clearance	mm	120
Engine	Brand	YANMAR
	Model	3TNV70
	Displacement	L	0.854
	Output	KW/rpm	10.3/2200
Working ranges	Max Digging height	mm	3020
	Max Dumping height	mm	2040
	Max digging depth	mm	1810
	Min .swing radius	mm	1590
	Max digging force (Arm)	KN	6
	Max digging force (Bucket)	KN	10
Track	Type		Rubber track
	Rubber shoe width	mm	180
Undercarriage	Track length	mm	1300
	Traveling speed	km/h	2.2
	Grade ability	deg	58/30
Swing speed		rpm	12
Ground pressure		kpa	30
Dozer size	Width	mm	850
	Height	mm	240
	Lifting capacity (Height/Depth)	mm	150/200
Hydraulic pumps	Type		1 Gear pump
	Flow rate	L/min	20.5
	Hydraulic pressure	Mpa	18
Swing motor			Cycloid motor
Travel motor			Cycloid motor
Fuel tank capacity		L	7
Hydraulic oil tank capacity		L	14.5

Detailed Photos


Company Profile
Linyi Kima Machinery CO.,LTD is a professional manufacturer of wheel loaders and excavators in China.
Our leading products include 0.6 to 3-ton wheel loaders and mini excavators. Most of the products have passed the following certificates: ROPS&FOPS, CE , TUV.
Now our machines have a good market in Australia, South America, Argentina, Canada, Germany, Norway, Finland, Sweden, Netherlands, Poland, Russia, etc.
After Sales Service
1. We will supply the whole day's online service to foreign customers. 2. Within the warranty period and if the machine parts are damaged under normal using conditions, we will offer free new ones for replacement.3. After the expiry of the warranty, we can renew the contract, which can enjoy the same service as that during the warranty period.
Certification
Other Products

KME10 Engine:KOOP Dimension:2876x880x2220mm Weight:960KGS Bucket capacity:0.023m³	KME12 PRO Engine:KUBOTA Dimension:2965x990x2230mm Weight:1220KGS Bucket capacity:0.023m³	KME15 Engine:YANMAR Dimension:3160x1050x2220mm Weight:1350KGS Bucket capacity:0.04m³
KME20 Engine:KUBOTA Dimension:3865x1050x2270mm Weight:1950KGS Bucket capacity:0.06m³	KME22 Engine:KUBOTA Dimension:4170x1300x2280mm Weight:2200KGS Bucket capacity:0.1m³	KME26 Engine:YANMAR Dimension:4159x1550x2560mm Weight:2600KGS Bucket capacity:0.08m³

FAQ:Q1. What Payment terms would you accept? Normally we accept L/C, or /T 30% down payment, balance to be paid against BL copy and loading pictures.
Q2. What is your delivery time? For standard machines, the delivery time is Within 25-35 days after receiving the down payment.
Q3. What services would you offer if I buy from you? Our trained Professional service team offers high-quality, on-time service in a very friendly way. For a good customer
Experience, the content of pre-sales, includes the recommendation on the basis of the right products in physical condition. All you have to do is to inform us of your needs.
Q4. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery.
Q5:What to do if there is a problem with the product? 1. We offer 1 year or 1000-hour running time warranty. 2. We offer technical support for free all the time.
3. We can send the parts to the customers by express delivery as soon as possible.

---
