Welcome to visit

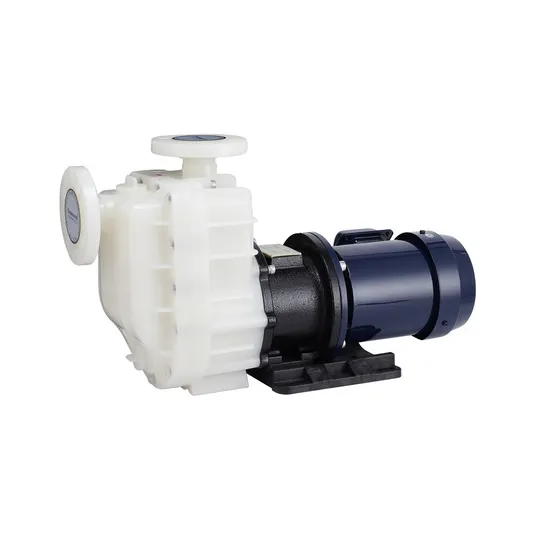

Acid Alkali Resistant Chemical Self Suction Magnetic Drive Centrifugal Pump

US$450.00-1,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
TXM
Max.Head
30-50m
Max.Capacity
>400 L/min
Driving Type
Magnetic
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump
Product Name
Self Priming Water Pump
Product
Self Priming Pump
Keywords
Self Priming Centrifugal Pump
Name
Self-Priming Pump
Function
Self Suction Pump
Feature
Centrifugal Pump Self Priming
Product Description
Self Priming Pump Chemical
Description
Magnetic Pump
Application
Self Priming Pump for Chemical
Transport Package
Wooden Box
Specification
766 X 250 X 401mm
Trademark
Transcend
Origin
Dongguan
HS Code
8413709990
Production Capacity
20000PCS

Product Description

Methylene Chloride Solution Transfer Small Magnetic Self Priming Chemical Pump
Model No. Inlet Dia. Outlet Dia. Power Flow Rate(50Hz) Head(50Hz) Flow Rate(60Hz) Head(60Hz) N.W.(Kg)
TXM-1118 20mm 20mm 0.18kw 55L/min. 7.0m 75L/min. 9m 11
TXM-1125 20mm 20mm 0.25kw 65L/min. 7.5m 85L/min. 9.5m 11
TXM-220 25mm 25mm 0.37kw 90L/min. 13.5m 100L/min. 12.5m 18
TXM-221 25mm 25mm 0.75kw 140L/min. 16m 155L/min. 19m 24
TXM-222 25mm 25mm 1.5kw 160L/min. 18.5m 170L/min. 20m 30
TXM-441 40mm 40mm 0.75kw 190L/min. 17m 200L/min. 19m 32
TXM-442 40mm 40mm 1.5kw 280L/min. 18m 310L/min. 26m 36
TXM-443 40mm 40mm 2.2kw - - 350L/min. 27m 39
TXM-542 50mm 50mm 1.5kw 240L/min. 24m - - 45
TXM-543 50mm 50mm 2.2kw 420L/min. 25m 415L/min. 30m 48
TXM-545 50mm 50mm 3.7kw 440L/min. 27m 520L/min. 37m 62
TXM-552 50mm 50mm 1.5kw 350L/min. 24m - - 45
TXM-553 50mm 50mm 2.2kw 430L/min. 25m 420L/min. 30m 48
TXM-555 50mm 50mm 3.7kw 445L/min. 26m 530L/min. 35m 62
