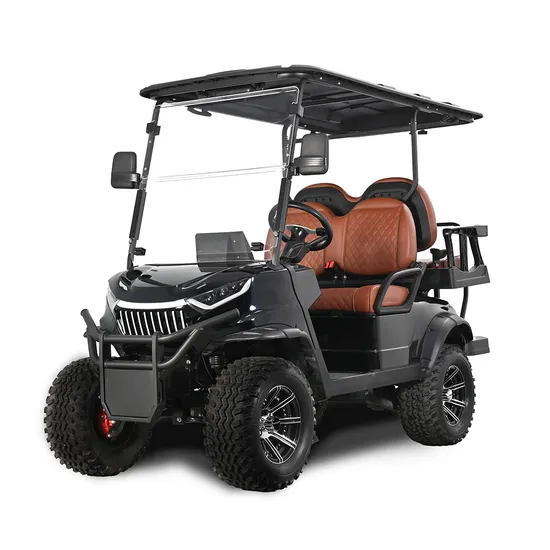

4 Wheel Electric Club Cart Buggy Cart 4+2 Seaters Electric Golf Carts

Product Description

Product Description Product Description

Dynamic System		Dynamic System
Motor:KDS 48V AC motor Power :5KW Electrical System :48V Battery :Shengyang 6 pcs 6x8V Lead Acid Charger:Intelligent, 48V/18A,charging time<8hours (discharging rete 80%) Controller :48V350A DC: DC-DC 48V/12V-300W		Motor:KDS 48V AC motor Power:5KW Electrical System:48V Battery:48V150A Lithium Charger:Intelligent, 48V30A,charging time<8hours(discharging rate 80%) Controller :48V350A DC:DC-DC 72V/12V-300W

Product Parameters

Bitmap EV-L Lifted Model
				EV-L2	EV-L2+CSA	EV-L2+2	EV-L2+2+GBR
STD				Specification
Dynamic System		Dynamic System		Size Overall
Motor:KDS 48V AC motor Power :5KW Electrical System :48V Battery :Shengyang 6 pcs 6x8V Lead Acid Charger:Intelligent, 48V/18A,charging time<8hours (discharging rete 80%) Controller :48V350A DC: DC-DC 48V/12V-300W		Motor:KDS 48V AC motor Power:5KW Electrical System:48V Battery:48V150A Lithium Charger:Intelligent, 48V30A,charging time<8hours(discharging rate 80%) Controller :48V350A DC:DC-DC 72V/12V-300W		2520*1340*2050mm	2950*1340*2130	2950*1340*2130	2950*1340*2130
				Net Weight
				<=550kg	<=560kg	<=610kg	<=620kg
				No.of Passengers
				2 Passengers	2 Passengers	2+2 Passengers	2+2 Passengers
				Wheel Axle Distance
				1680mm	1680mm	1680mm	1680mm
				wheel dis Front/rear	Front1005mm/Rear1075mm
Confortable Performance				Ground Clearence	170mm
★ IP66 waterproof advanced multimedia combination LCD screen with vehicle status information; ★ IP66 full range hifi speaker H058 ★ Comfortable seats : integral foam cushion+solid high-grade leather ★High-strength anti-skid floor, corrosion resistance and aging resistance				Min Turing Radius	3.2m
				Max Speed	25MPH
				Climb Performance	25%
				Slope Performance	25%
				Battery life	50-70mile(Normal road)
				Brake distance	<3.5m
Suspension & Brake Performance: ★Front suspension:Macpherson Independent Suspension. ★Rear suspension:Integral rear axle,Speed ratio 16:1 Spring plate and Hydraulic Shock ★Braking system:rear axle,4wheel hydraulic brake, 4wheel disc brake + electronic brake parking ★Turning system:Bi-directional rack and pinion steering system, Automatic backlash compensation. ★Frame:High-strength metal trapezoidal frame (electrophoresis + high gloss).
Factory Installed Accessories
Ceiling		Square tube frame Coating + PP injection molding one-piece
Wind screen		DOT certified foldable glass
Safety Belt		DOT certified safety belts
Body		The front cover, seat barrel, body and rear cover are molded by special injection material for automobiles;
Floor		anti-slip floor, high-strength, corrosion resistance, aging resistance.
Dash board		Plastic-molded instrument panel, IP66 waterproof , water cup holder; 12V power supply, USB+ Type-c charging/Dual USB charging.
LCD Screen		IP66, 5 inch LCD , Multimedia instrument, with vehicle detection
Speaker system		IP66 full range speaker H058
Seats		Overall foam molding seat cushion; solid color leather; rear basket (including: ball bag bracket)
Hub		BK -A186; BK-0828; BK-204 12 inch aluminum wheel Size:12x7 PCD: 4/101.6
Tire		DOT certification; All terrain 23 * 10.5-12 (4 Ply Rated)/tire
Rear Mirror		Adjustable,foldable rear view mirror
LED and alarm Signal		Front multi functional LED light/Rear multi functional L ED light
Color of Body		Standard (Forest Green, Ivory, White, Gold, Electric Blue, Apple red, black, Grey)

Detailed Photos Product Photo
tow
three
four

Company Profile Company InformationFactory Production Details
Packaging & Shipping
Packaging & Shipping 1.Delivery date: 20 days for mass producing
2. 1*20'GP fit 8 units.1*40'HQ fit 18 units.
3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.
After Sales Service Our Service
We provide 12 month warranty to electric vehicles. FQA Q1: What kind of certificate you have ?
A: ISO9001 Certification, CE Certification.
Q2: Do you accept customized products?
A: Yes, we can make customized products as well as per your drawings and other requirements including OEM.
Q3: How long is the lead time of the product?
A: Generally within 20 days after receipt of the deposit.
Q4: How about the trading term and payment term?
A: We can accept FOB or CIF,T/T and L/C at sight payment.
Q5: How about the warranty term and post service
A: One year warranty,offer FOC components by EXW cost shipped term,full weather post service .

---
