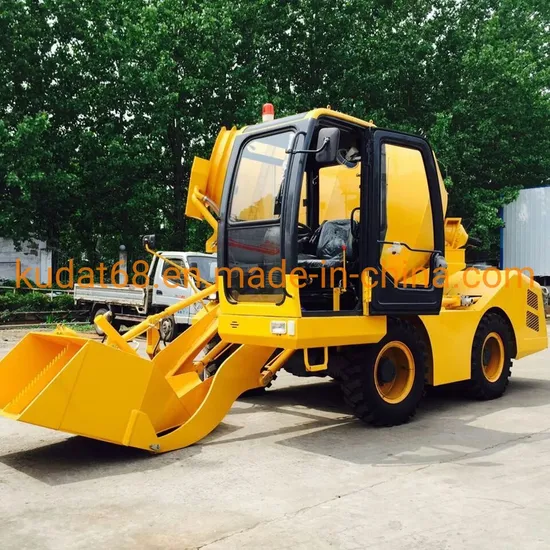

3000L Mixing Capacity Self Loading Concrete Mixer

Product Description

3000L Mixing Capacity Self - Loading Concrete Mixer KDMT-3 With 600L
Loading Shovel For Concrete Mixing Works
Specifications:

Vehicle	Curb weight	kg	7300
	Drive		4 wheels
	Steering	mm	Front wheels
	Tyre	mm	17/16-20
	Transmit speed	km/h	0-23
	Working speed	km/h	0-9
	Gradient	°	15
	Dimension(for shipping, shovel dismantled)	(L*W*H) mm	5300*2450*3360
Engine	Model		Dongfeng Cummins 4BTA3.9-C125
		water-cooled, 4 cylinders.
	Power	kw/r/min	93kW(126.5HP)/2200rpm
	Emission	L	3.9
Mixing drum	Geometrical volume	m3	5
	Mixing capacity	m3	3
	Inclined angle	°	16
	Feeding speed	m3/min	1.5
	Discharging speed	m3/min	1
	Remnant rate	%	≤1
	Slump rate	mm	160-230 ±30%
Hydraulic system	Hydraulic pump		Imported Bosch Rexroth pump
	Hydraulic motor		China top brand
	Speed reducer		China top brand
Water supply	Water tank capacity	L	300
	Supply method		Hydraulic driven water pump

Mixing unit: Double mixing screws. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed independent from r.p.m of diesel engine. Discharge concrete by reversing drum. The mixing unit is slewing hydraulically through 300°for high discharge over 2m to the four sides of the vehicle.
Engine:diesel Cummins 4BTA3.9-C125, water-cooled, 4 cylinders. Rated power 93kW
(126.5hp) set at 2,200rpm. Engine mounted transversal on the rear..
Transmission: Bosch Rexroth pump. Pump and motor are connected to the differentials
through a 2 speed reducer (working and transfer). 4 wheel drive and front wheel steering.
Speed: Working speed from 0 to 9km/h, road transfer from 0-23km/h.
Driving seat: Front cab on side of loading shovel. ROPS-FOPS type.
Hydraulic system: three circuits. 1 variable outlet pumps for hydrostatic transmission and
drum rotation. 2 gear pumps for services. Inlet and outlet filter.
Joymix: All hydraulic functions of shovel controlled by a single fully servo controlled joystick.
Loading shovel: Capacity 600 liters complete with hydraulic opening gate.
Chute: Slewing and manual tilting. Easy detach for the convenience of discharging.
Water system: Self contained. Hydraulic driven water pump, water meter,
washing outlet. High pressure water pump.
Gradient: Fully loaded 30%.
Brakes: Oil bath disc brakes inside differential axles. Twin independent circuits.
Electric system: 24 Volt battery for electric starter and road lighting.
Tanks: Water 300 liters. Diesel 128 liters. Hydraulic oil 140 liters.
Chassis: Steel profile specially engineered for off-road operations.
Weight: About 7,300kg equally distributed on both axle

---
