US$2,100.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
KQ 100L - KQ 50000L
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid
Main Material
Stainless Steel
Mixing Drum Shape
Circular Groove
Name and Description
China Stainless Steel Assy Mixing Heating Tank 1
Material
Food Grade Stainless Steel 304 /316
Applications
for Milk, Juice, Beverage, Chemical
Working Temperature
80c to 220c
Mixing Speed
36rpm/ 48rpm /72rpm
Insulation
Polyurethane Foam
Voltage /Hz /Phase
Make to Your Order .
Motor Brand
ABB /Simens /China
Voltage ,Hz.Phase
Make It to Your Order
Operating type
Continuous Operating
Transport Package
Standard Wooden Box
Production Capacity
100units/Month
Product Description

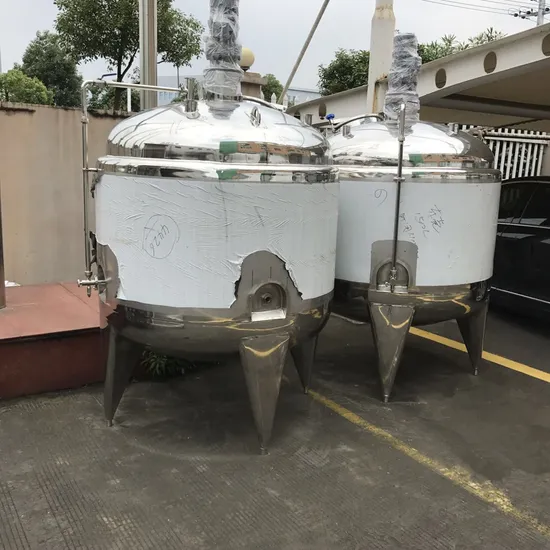

China Stainless Steel Assy Mixing Heating Tank 100L-100000L
Mainly used for heating, mixing, pasteurizing, fermenting, preserving and storing fresh milk or other fresh liquid. It's the ideal HEATING, mixing pasteurizing and storage equipment for pasture, milk station, milk, and food and beverage factory and pharmacy industry.
| TankCapacity(L) | 200, SS304 | 300, SS304 | 500, SS304 | 1000,SS304 |
| REV | 36r/min | 36r/min | 36r/min | 36r/min |
| Electric motor of the agitator | 0.55KW,380v,50hz | 0.75KW,380v,50hz | 0.75KW,380v,50hz | 1.1KW,380v,50hz |
| Electric heating tube power | 15KW,380v,50hz | 18KW,380v,50hz | 24KW,380v,50hz | 45KW,380v,50hz |
| Heating Area(M2) | 0.9 | 1.1 | 1.9 | 4.5 |
| Material Input/output(DN MM) | 38 | 38 | 38 | 50 |
| OUTSIDE DEMENSION(L*W*H)MM | 900*900*1600 | 1000*1000*1500 | 1100*1100*1700 | 1400*1400*1750 |
Heating by Electricity
* Type: With Jacket and insulation
* Internal shell thickness: 2 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down
Specification:
1. Electric heating
2. Jacketed with insulation layer
3. With or without mixing system. Mixing device: Paddle, Anchor, or spiral agitator (optional and changeable to meet customer demands).
4. Material: SUS 304 or SUS 316.
5. Outer casing surface: Mirror polishing / 2B original sub-gloss / 2B frosted sub-gloss; Inner surface (bladder and tank): Mirror polishing (Roughness: Ra≤ 0.4μ M ).
6. Liquid level gauge: Digital metre or glass gauge optional.
7. Thermometer: Optional. Temperature indication ranges from 0 to 100º C.
8. Sample valve optional
19. CIP cleaning: T-shaped 360° Rotational CIP cleaning ball.
10. Man-hole equipped.
