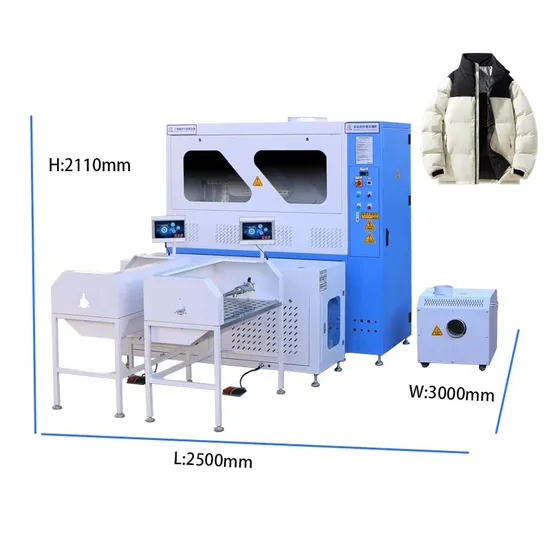

FUDA Remote Monitoring Double Nozzles Eight Scales Short Chemical Fiber Padding Machine for Women Thick Winter Coat

US$5,799.00-25,999.00 1 set (MOQ)

Basic Info.

Model NO.
2 Ports with 8 Weighing Hoppers
Feature
Automatic Weighing, Charging & Suction, Quantitative Down Charging, Compact Size
Filling Valve Head
2 Nozzles
Filling Nozzles
Two Nozzles
Weighing Cycles
Eight Weigh
Show Weight Accuracy
0.01gram
Filling Range
0.2-35grams
Nozzles Size
16mm, 19mm, 25mm
Display Device
10" Touch Screen
Filling Materials
Duck Down, Goose Down
Padding Materials
Ball Fiber, Short Fiber
Application
Down Jacket, Winter Clothes
Storage Volume
10-15Kg
Air Supply
0.6-0.8Mpa
Power
1Phase AC220V 3Kw
N.W(Kgs)
750kg
G.W(Kgs)
950kg
Dimension(L*W*H)
2500*3500*2000mm
Transport Package
Wooden Case
Specification
2 Ports 8 Scales
Trademark
FUDA
Origin
China
HS Code
8479899990
Production Capacity
100sets/Month

Packaging & Delivery

Package Size
225.00cm * 116.00cm * 226.00cm
Package Gross Weight
950.000kg

Product Description

Faster Speed Automatic Professional Multi-Function Grey Duck Goose Down Bedding/Pure Down Pillow/Down Feather Comforter/Sample Duvet Stuffing Filling MachineProduct Description
Application
Packaging & Shipping
Company Profile
the company was established in 2010 in shanghai
is committed to the application of fiber filling machine.
we have a young technical team dedicated to technological innovation to maintain the stability and advancement of the down filling machine.
in the past ten years,we have thousands of users.
in the future, we hope to become a favorite brand.

Daily Maintenance Manual
1,Weighing Material Box:
a.Frequently use a air gun to clean the dust and debris around the Weighing material box to prevent electrostatic interference.
Note: Do not blow directly on the sensor components, so as not to be damaged by overweight
b.Do not touch or squeeze the material box forcefully to avoid displacement or damage to the sensor.
c.Before turn off the Machine, suck out all materials in the weighing material box, and it is strictly forbidden to remain.
2,Calibration Weight:
a.Check the weight value in the weighing material box with 100g weights regularly. If the deviation is large, please calibrate the weight in time.
3,Compressed Air supply:
a.The default working pressure of this machine is 0.6-0.7Mpa. If the deviation is large, please adjust it in time.
b.Drain the air compressor and gas storage tank regularly to prevent oil and water from entering the pneumatic components and affecting the operation of the equipment.
Standard drainage cycle: once every 7 days. If the workload is heavy, it can be adjusted to once every 3 days.
4,Centrifugal fan:
a.Inhale the raw materials evenly into the storage box, and remove the debris in time to avoid damage to the fan.
5,Gear motor:
a.The default motor speed of this machine is 80%. Do not run at low speed to avoid locking and damaging the motor.
b.The motor working temperature is 80°C, if it exceeds 110°C, the thermal protection function will be activated, and it will operate normally after the temperature drops.
c. Please do not overload the operation for a long time, ensure the heat dissipation and ventilation space of the motor, that can extend the service life.
6,Clean Dust:
a.Regularly clean the main box, weighing box, and work table to prevent debris from being sucked into the bearing or motor and affecting the operation of the machine.
b.Ensure that the ventilation net is not blocked by dust.
FAQ
QI:Does this machine require skilled workers to use it?
A1:It is simple and easy to learn, novices can also learn, we have video guidance.
Q2:What type of raw materials can be filled with this machine?
A2:It can be filled with short fiber, duck down, goose down.
Q3:How is the filling weight accuracy of this machine
A3:Its accuracy can reach 0.01g
After Sales Service
Pre-sales service supportAfter-sales service support
Fully understand the customer production scene and production processFree upgrade of control system software
Provide complete solutionsExpert engineers available to service machinery overseas
Keep close contact with customersRegular return visit service
