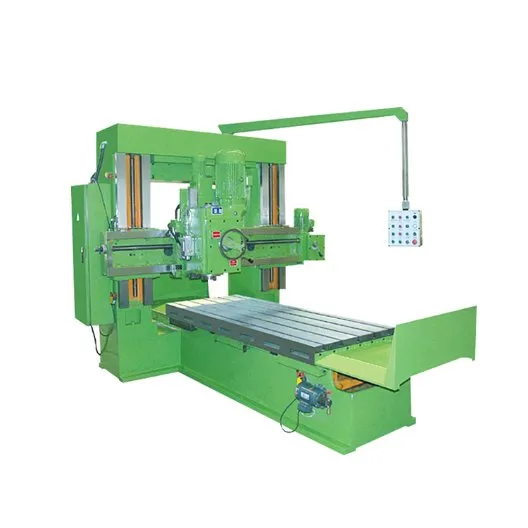

High Precision Well Selling CNC Plano Milling Machine

Product Description

Product Description
Workbench activities such as mop, paste imported TURCITE. B, the lower the friction coefficient. Activity type forced lubrication system, more reasonable and effective protection guide rail, which make the little vibration of machine tool in high speed, high stability, low speed to crawl Using FC30 strong cast iron castings, via the annealing treatment, stress relief, machine tool guideway by high-frequency heat treatment, grinding, ensure that the wear resistance of sliding surface, durable precision Gear, castellated shaft, key, etc., all with chromium molybdenum alloy (SCM415H), via the carburizing and hardening and precision grinding (JIS1 level) to ensure that the operation precision and service life. The design of the electric control system, provide human nature to change more, the operation is simple, enables you to use it.
1,Max processing workpiece length:3000mm
2,Max processing workpiece width:1300mm
3,Max processing workpiece height:1200mm
4,Max loading weight:4 tons
5, Distance between columns:1300mm
6, Bed guide way distance:600mm
7,Working Table size:3000x900mm
8,Feeding speed:30-15000mm/min
9,Feeding motor:15kw(Servo)
10, Beam to table distance:0-1200mm
11, Beam lifting motor power:2.2kw
12, Beam Lift Speed: 360mm/min
13, Vertical milling head left and right stroke: 1300mm
14, Vertical feed motor power: 0.75Kw
15, machine configuration:1 set 7.5kw vertical milling head, 1 set vertical planer head,1 set side milling head
16 Vertical milling head1) Spindle motor power:7.5kw
2) Spindle taper: N.T.50#
3) Diameter of outer end of spindle: φ128.57(mm)
4) Number of spindle speeds:6 steps (100-685r/min)
5) Up and down travel: 300(mm)
6) Horizontal movement distance: 1300(mm)
7) Maximum diameter of milling cutter: φ160(mm)
8) Rotation Angle of spindle: ±30°
17, Vertical planer head
1) Longituding traverse: 1300(mm)
2) Cutter specifications: 45×45(mm)
3) Rotation Angle of planer head: ±30°
18,Side milling head
1) Main motor: 7.5Kw
2) Spindle taper: N.T.50#
3) Diameter of outer end of spindle: φ128.57(mm)
4) Number of spindle speeds:6 steps (100-685r/min)
5) Up and down travel: 600(mm)
6) Horizontal movement distance: 300(mm)
7) Maximum diameter of milling cutter: φ160(mm)
8) Rotation Angle of spindle: ±30°
9,Machine size(LXWXH): 7000*3000*2500(mm) Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
