Slant Bed CNC Pipe Threading Lathe

Product Description

Product Description

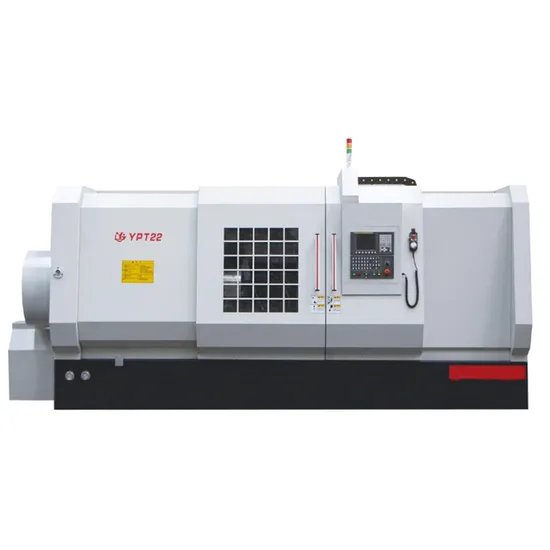

SLANT BED CNC PIPE THREADING LATHE INTRODUCTION
Slant bed CNC pipe threading lathe series is the new type automatic lathe with high precision and high efficiency, it equips with advanced accessories such as servo or power turret etc., this series lathe is capable of processing arc, straight and oblique cylinder workpiece, as well as turning threads etc., it is also used as normal cnc lathe to turn the internal and external cylindrical surface, conical surface and other rotating surfaces etc.
FEATURES
• Big spindle bore and double chuck to ensure process big diameter pipe
• Double pneumatic chucks ensure hold workpiece stable and efficiency
• One-piece bed adopts high strength iron to ensure rigidity and precision
• Ultrasonic frequency quenched guide-ways ensure good wear-resistance
• Carriage and guide-way contact surface use Turcite B to maintain accuracy
Standard Accessories
Siemens controller, hydraulic turret, pneumatic chuck, hydraulic tailstock
OPTIONAL ACCESSORIES
Fanuc or other brand CNC controller, power turret and power tools

Product Parameters

		SPECIFICATION	UNIT	YJPT19	YJPT22	YJPT25	YJPT27	YJPT30	YJPT35
		Swing over bed	mm	600	600	800	800	800	800
Capacity		Max. turning diameter	mm	450	450	450	450	450	450
		Swing over cross slide	mm	450	450	450	450	450	450
		Distance between centers	mm	600	600	600	600	600	600
		Slant bed layout angle	°	45	45	45	45	45	45
		Spindle bore	mm	206	225	255	280	300	355
		Spindle nose type	-
Spindle		Bar material through	-	190	220	250	275	295	350
		Spindle speed range	rpm	550	550	450	450	450	450
		TurreVtool post	-	NC turret 4 position
Turret		Tool shank size	mm	32x32	32x32	32x32	32x32	32x32	32x32
		X axis travel	mm	350	350	350	350	350	350
		Z axis travel	mm	600	600	600	600	600	600
Feed		X axis rapid traverse	mm/min	4000	4000	4000	4000	4000	4000
		Z axis rapid traverse	mm/min	6000	6000	6000	6000	6000	6000
Tailstock		Tailstock quill diameter	mm	Without tailstock
		Tailstock quill taper	-	-	-	-	-	-	-
		Tailstock quill travel	mm	-	-	-	-	-	-
		Main spindle motor	kW	22	22	22	22	30	30
Motor		Coolant pump motor	kW	0.37	0.37	0.37	0.37	0.37	0.37
		Width x Height	mm	2250X2350	2250X2350	2250X2350	2250X2350	2250X2350	2250X2350
Dimension		Length (chip conveyor included)	mm	5100	5100	5100	5100	5100	5100
Weight		Net weight	T	10.3	10.5	11.3	11.5	12.5	12.5

		SPECIFICATION	UNIT	YPT12	YPT15	YPT19	YPT22
		Swing over bed	mm	600	630	680	680
		Max. turning diameter	mm	500	600	600	600
Capacity		Swing over cross slide	mm	200	440	450	450
		Distance between centers	mm	600	1000	920	920
		Slant bed layout angle	°	45	45	45	45
		Spindle bore	mm	120	150	200	225
		Spindle nose type	-	A2-11	A2-11	A2-15	A2-15
Spindle		Bar material through	-	110	140	190	220
		Spindle speed range	rpm	850	800	550	550
		Turret/tool post	-		Hydraulic turret 8 position
Turret		Tool shank size	mm	32x32	32x32	32x32	32x32
		X axis travel	mm	350	335	350	350
		Z axis travel	mm	800	1100	1140	1140
Feed		X axis rapid traverse	mm/min	4000	4000	4000	4000
		Z axis rapid traverse	mm/min	6000	6000	6000	6000
Tailstock		Tailstock quill diameter	mm	-	130	140	140
		Tailstock quill taper	-	-	MT5	MT6	MT6
		Tailstock quill travel	mm	-	100	200	200
		Main spindle motor	kW	15	15	22	22
Motor		Coolant pump motor	kW	0.37	0.37	0.37	0.37
		Width x Height	mm	1850x1750	2050x2300	2000 x 2200	2000x2200
Dimension		Length (chip conveyor included)	mm	4450	4850	6600	6600
Weight		Net weight	T	7.5	7.5	11.8	12.0

---
