Vertical Radial Arm Radial Drilling Machine 40mm

US$7,000.00
1-9 Sets
US$6,000.00
10+ Sets

Basic Info.

Model NO.
Z3040x10
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Radial Arm Drilling Machine
Max. Drilling Diameter
40mm
Diameter of Column
240mm
Taper of Spindle
Mt4
Spindle Travel
280mm
Spindle Speeds Range
32-2500rpm
Radial Arm Rotation Angle
360 Degree
Spindle Motor Power
2.2kw
Arm Elevating Motor Power
0.75kw
Clamping Column Motor Power
0.37kw
Cooling Motor Power
0.09kw
Dimension of Worktable Surface
600X450X450mm
Key Word
Radial Drilling Machine
Function
Drilling Hole for Metal
Delivery Time
40 Days
Transport Package
Wooden Case
Specification
40mm diameter
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
2000.000kg

Product Description

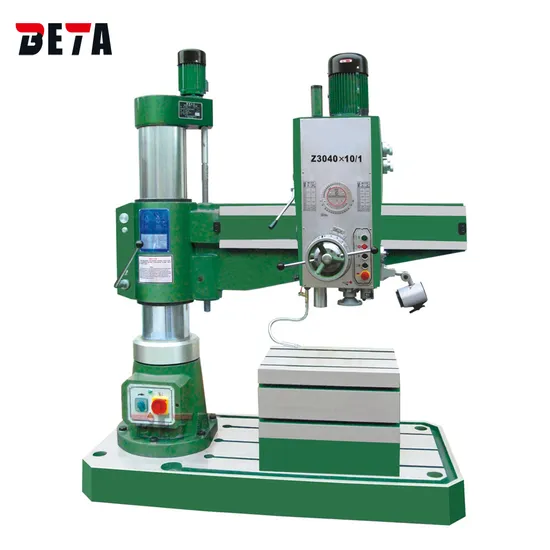

Z3040x10/1 Metal Steel Drilling Diameter 40mm Radial Arm Drilling Machine
Model Unit Z3032x10/1, Z3040x10/1
Max. Drilling capacity mm 32/40
Distance spindle axis to column generating line mm 300-1000
Diameter of column mm 240
Taper of spindle MT4
Spindle travel mm 280
Spindle speeds range r/min 32-2500
Spindle speeds series step 16
Spindle feeds range mm/r 0.1-1.25
Spindle feeds step step 8
Range of spindle feeding mm/r 0.10~1.25
Speed of arm elevating m/min 1.27
Radial arm rotation angle degree 360
Max. spindle nose to base mm 220-1000
Dimension of worktable surface mm 600x450x450
Dimension of base mm 1710x800x160
Overal size mm 1760x800x2050
Spindle motor power kW 2.2
Arm elevating motor power kW 0.75
Clamping column motor power kW 0.37
Cooling motor power kW 0.09
G.W/N.W kg 1830/1920
Packing dimension mm 1870x970x2200

Features: With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengaged at any time. With safe and reliable feed safety machine, all parts easy operation and change. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power. Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts. Spindle parts are made by special high quality steel head treatment to be made by first class equipments, ensuring high strength and durability. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Standard accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts
Radial drilling machine is a type of drilling machine where the radial arm can rotate and lift around the column, and the spindle box usually moves horizontally on the rocker arm. When machining holes on a vertical drilling machine, the alignment between the tool and the workpiece is achieved through the movement of the workpiece, which is obviously very inconvenient for some large and heavy workpieces; The radial drilling machine can be aligned by moving the position of the tool shaft, which brings great convenience to machining holes on large and heavy workpieces in single and small batch production.
It can also be called a radial drill. It is a hole processing equipment that can be used for various forms of processing, such as drilling, expanding, reaming, tapping, and scraping the end face. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among various types of drilling machines, radial drilling machines are easy to operate, flexible, and have a wide range of applications. They are typical and particularly suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general mechanical processing workshops.
