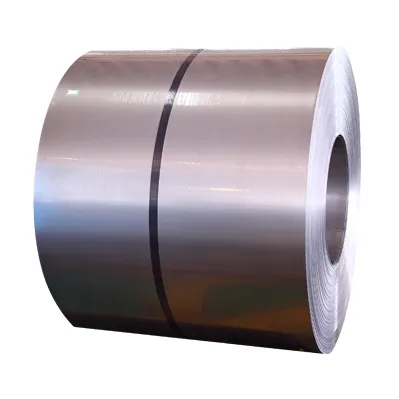

11al/18al/08al/F11/F18 Bullut Shell Special Carbon Alloy Steel Cartridge Case Steel

US$800.00-1,500.00 100 Tons (MOQ)

Basic Info.

Model NO.
F11/F18
Type
Steel Coil or Steel Plate
Standard
GB, JIS
Certification
ISO, RoHS
Surface Treatment
Clean
Technique
Cold Rolled or Hot Rolled
Application
Cartridge Case
Special Use
Cutting Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel
Stock
Stock
Transport Package
Wooden Support or Wooden Box
Specification
thickness 0.5mm-30mm
Trademark
Estar
Origin
Ningbo
HS Code
7225409900
Production Capacity
10000tons/Years

Product Description

Table 1:
Card number
Code name		 Chemical into
Points,%
C Si Mn P S Cr Ni Cu Als
11Al F11 ≤0.11 ≤0.06 0.30-0.55 ≤0.030 ≤0.030 ≤0.15 ≤0.30 ≤0.20 0.02-0.10
18Al F18 0.11-0.19 ≤0.06 0.35-0.55 ≤0.030 ≤0.030 ≤0.15 ≤0.30 ≤0.20 0.02-0.10
When the carbon content of 18A1 is 0.13% ~0.19%, the lower limit of 0.30% and the maximum limit of 0.60% when the carbon content is less than or equal to 0.12%.
Table 2:
Set. Table 2
Card Codena Sample heat treatment At the tensile elongation gas,%
11Al F11 920 ±20X3 295~390 >28
18Al F18 Heat insulation 30min, air cooling 345~440 >26

Table 3:
Thick Degree Width Degree Seat length
Public name size Public name size Public name size
1-30mm 50-1500 455-2000
Remarks: Tape delivery is available for thicknesses up to 15mm Equipment and workshop
