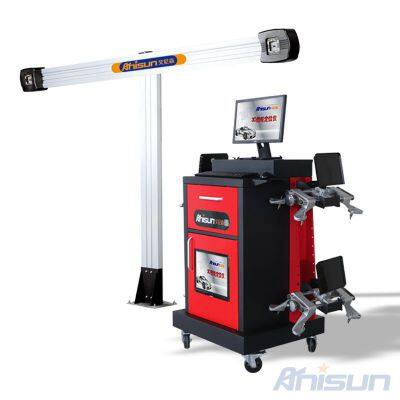

V3K2 Dual screen 3D wheel alignment machine
Technical Parameter
Specification
| Item
|
Accuracy
| Range
| Total Range
|
Front Wheel
| Camber
| ±0.02°
| ±8°
| ±8°
|
Caster Angle
| ±0.05°
| ±10°
| ±10°
|
Kingpin Caster Angle
| ±0.02°
| ±19°
| ±19°
|
Toe
| ±0.02°
| ±4°
| ±8°
|
Rear Wheel
| Rear Axle Offset
| ±0.02°
| ±2°
| ±4°
|
Maximum steering Angle
| ±0.08°
| ±25°
| ±45°
|
Thrust-angle
| ±0.02°
| ±2°
| ±4°
|
Track Width Difference
| ±0.03°
| ±2°
| ±8°
|
Front Set Back
| ±0.02°
| ±2°
| ±4°
|
Rear Set Back
| ±0.02°
| ±2°
| ±4°
|
Track Width
| ±0.64cm(0.25cm)
| | Wheel Base
| ±0.64cm(0.25cm)
| <533cm(210in)
|
Product Details
1.High accuracy, anti glare target disk
2. 5 megapixel industrial camera for fast data reading
3.Dual screen, more convenient and fast
4.Industrial computer host, fast without jamming
Product Feature
1. Windows 8 Chinese operating system, the latest version of three-dimensional animation ANS-42 positioning software, label
Quasi-Chinese navigation menu interface, easy to learn.
2. There are no electronic components on the target disk, no wire harness transmission, no batteries and no passage.
Blue-tooth infrared transmission data greatly reduces the product failure rate.
3. According to the requirements of high-grade vehicles, the measurement is more accurate and the repeatability measurement error meets the international standards.
4. Brand computers retain upgrading space for 10 years without changing equipment and saving cost.
5. Once the equipment has been calibrated, it can be installed on site and not be affected by the site.
6. The front beam arc of Passat B5 and Audi A6 can be measured by configuring the VW VAG special program.
7. Specific operation method: Four target discs are hung on the rim of the wheel to drive the car or rolling wheels.It can complete the positioning measurement, realize the automatic compensation of positioning data, and make the measurement data more precise.It is accurate and easy to operate.
8. Using three-dimensional imaging technology, it can be fast and accurate without a horizontal test plane location.
9. Multilingual choice can be applied to 26 countries and regions.
10. Barrier-free measurement of ultra-low chassis.
11. Accurate measurement of vehicle chassis data is a good helper for accident vehicle maintenance.
12. It has a variety of matching functions. It can measure the height of the car body, air suspension, front bundle locking, etc.
Adjustment of engine bracket, etc.
13. Menu options have detailed functional descriptions, clear markings and bright colors, which can be avoided user misoperation.
FAQ
Q: Why should I choose Anisun?
A: Twenty year manufacturer, wheel aligner, tyre changer, wheel balancer, car lift and other car maintenance equipment, and all products were made of high-quality parts,all of our product are tested well before delivery,Low prices with high quality revenue producing products.The best customer service.Quick reply within 24 hours and more.
Q: How safe are Anisun products?
A: Our products have passed CE certificate. Warranty time is 12 months, and if there is anything wrong about our products when exceed 12 months, just contact us. We will send the components to you freely. or we will help you online directly.
Q: Should I keep repair and replacement parts in stock?
A: Yes,most all commonly required repair and replacement parts should always keep in stock.
Q: Are Anisun products designed for commercial use?
A: All of our products can be used in commercial applications without any problems.
Q: Do you offer any custom designs?
A: Yes,Anisun provide OEM/ODM services to top range partners.
>>
