Water Jet Loom Onion Bag PP Leno Fabric Weaving Machine

Product Description

Product display and advantages
Main Feature :
The PP PE for Leno Fabric & Onion Bag Weaving Machine TDP-501 boasts a sturdy frame and loom body, equipped with an electric feeder and automatic weft density adjustment. This ensures easier production and maintenance, making it more efficient.
APPLICABLE SCENE
·

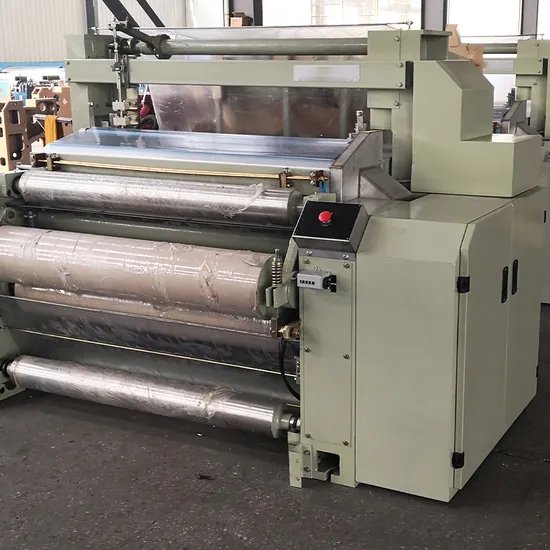

TDP-501 is a new type water jet loom,which could be uesd to produce leno of PP or PE.The
final products can be used into packaging of onion, garlic, fruits etc.
Product Details
Economic configurations use mechanical feeder and weft density change by gear.
Strong frame and loom body,electronic feeder and automatic weft density change ensure smooth running,high efficiency and better fabric quality. This design cuts the production cost and makes the operation and maintenance much easier.
TDP-501 is a new type water jet loom,which could be uesd to produce leno of PP or PE.The final products can be used into packaging of onion, garlic, fruits etc.
Main technical parameters

1,Main motor power	150CM Reed~ 2.2 KW
2, Speed	150CM Reed/350~450 rpm
3,Fabric Range	Fabric weight:10~70gsm (According the the yarn quality)
	Weft density: 1~3/inch Warp density: 6/inch
	Max weft yarn width: 4mm Min weft yarn thickness: 0.05mm
	Weft feeding is electronic ROJ feeder from Italy
4,Take up	A, Out of the loom
	B, Maximum take up diameter: 1500 mm
5,Output (in 24 hours based on 6 mesh/according to customer yarn)	3000-3600M
6,Water Consumption (in 24 hours/ Recyclable)	5~7m³

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
