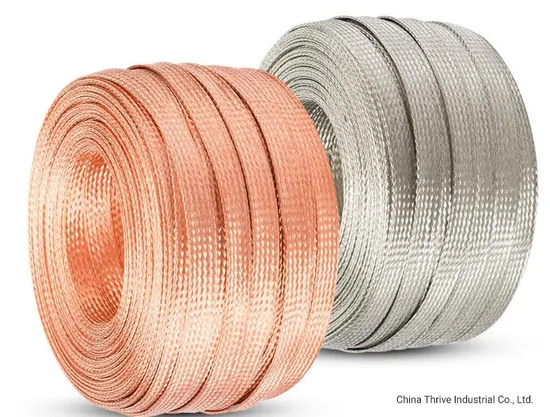

Flat Flexible Bare Braided Copper Wire

Product Description

We are professional in the braided copper wire .
The braided copper wire is used as flexible connector for electric appliance, electric Stove and storage battery. It can be manufactured according to customer s Drawings and demands.
Technique performance:
1) Braided copper wire adopts super-quality round copper wire of tinning flexible copper wire to be braided in multiple-thread one layer or many layers
2) The DC electrical resistivity (20oC) of braided copper wire is lower than 0.022/m. The DC electrical resistivity (20oC)
Of tinning braided copper wire is lower than 0.234/m
3) The technique standard of this product conforms to JB/T 6313.2-1992
Should any specification interesting in, pls let me know, we are happy give you excellent price and more better service.
Looking forward to hear from you in order to establish mutually profitable business relations.
Technical specification:

Cross-section		Structure	Outer dimension		Calculating weight (kg / km)
Standard cross-section (mm2)	Calculating cross-section (mm2)	Layers x strands number x wires number / single wire diameter (mm)	Width (mm)	Thickness for reference (mm)
			Width ≤	Thickness ≤
2	2.12	24x5x1/0.15	5	0.8	21
2.5	2.54	24x6x1/0.15	6	0.8	25.4
4	4.24	24x10x1/0.15	7	1.2	42.2
	4.14	32x8x1/0.15	7.5	1.0	41.2
6	6.24	32x11x1/0.15	10	1.2	64.5
	6.36	36x10x1/0.15	11	1.2	63.8
8	8.45	48x10x1/0.15	13	1.2	85
10	10.7	36x16x1/0.15	14	1.5	108
	10.6	40x15x1/0.15	15	1.5	106
	10.18	48x12x1/0.15	16	1.5	102
12	12.72	48x15x1/0.15	118	1.8	128
16	16.96	48x20x1/0.15	22	1.8	170
20	21.2	48x25x1/0.15	25	1.8	212.5
25	25.45	48x30x1/0.15	28	1.8	254
	25.45	48x15x2/0.15	20	3.5	254
35	33.93	64x30x1/0.15	40	2	340
	33.93	48x20x2/0.15	26	3.5	340
50	50.87	64x45x1/0.15	50	2	510
	50.87	48x30x2/0.15	30	3.5	510
	50.89	48x20x3/0.15	28	4.8	510
75	76.34	80x54x1/0.15	60	2.0	765

Common specifications : 2mm2 2.5mm2 3.5mm2 4mm2 6mm2 8mm2 10mm2 16mm2 20mm2 25mm2 35mm2 50mm2 75mm2 95mm2 100mm2 120mm2
Commonly used monofilament wire diameter : 0.10mm; 0.12mm; 0.15mm; can also be customized according to user requirements of monofilament 0.04mm; 0.05mm; 0.06mm; 0.07mm; 0.08mm; 0.20mm; 0.25mm.

---
