Pumps Medical Driver Electric ICU Safe Infusion Portable Syringe Pump with CE

Product Description

Product Description

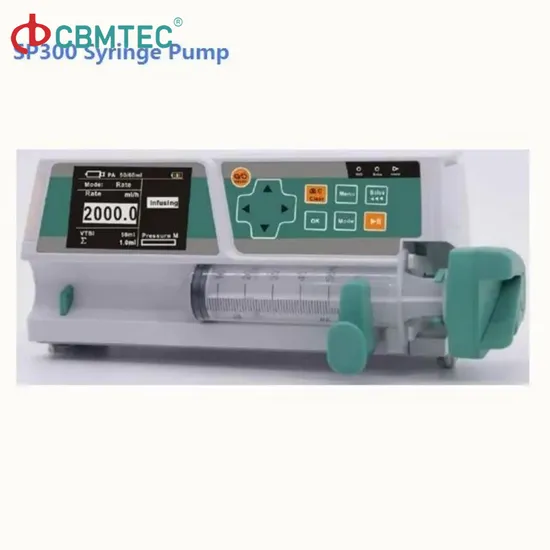

Syringe Pump
· Brand-new appearance to provide better visual sensibility;
· Intuitively and clearly display various information through LCD and LED screen;
· Design as One-key Rotary Knob and innovative interactive user interface;
· Multi-pumps combination is allowed to save more space;
· One-key to start Simple mode injection, which enables easier operation.
Specification

Model	BYZ-810T& BYZ-810TU
Infusion Rate	50(60)ml Syringe 0.1ml/h---999.9ml/h(0.1ml/h step) 1000mh/h---1500ml/h (1ml/h step) 30ml Syringe 0.1ml/h---900ml/h(0.1ml/h step) 20ml Syringe 0.1ml/h---600ml/h(0.1ml/h step) 10ml Syringe 0.1ml/h---300ml/h(0.1ml/h step)
Rate Accuracy	Within±3%(after correct calibration)
Purge Rate	50(60)ml Syringe:1500ml/h 30ml Syringe:900ml/h 20ml Syringe:600ml/h 10ml Syringe:300ml/h
Mechanical Accuracy	Within±2%
Bolus Rate	50(60)ml Syringe:1200ml/h 30ml Syringe:720ml/h 20ml Syringe:480ml/h 10ml Syringe:240ml/h
Equipment Classification	Class I,intermal power supply,Type CF
Fuse	T2AH/250V,2pcs installed
Power Consumption	35VA
KVO Speed	1m/h
Audible and Visible Alarms	Occlusion,Equipment failure,Software Exception,Injection finish,Limited finished,Battery running out,Improperly installed ,Abnormal operation ect.
Occlusion	High 800mmHg±200mmHg(106.7kPa±26.7kPa) Medium 500mmHg±100mmHg(66.7kPa±13.3kPa) Low 300mmHg±100mmHg(40.7kPa±13.3kPa)
Total Injection	0.1ml---9999.9ml(0.1ml step)
Volume Limit	0.1ml---9999.9ml(0.1ml step)
Maximum Infusion Pressure	150kPa
Bolus Rate	50(60)ml Syringe:1200ml/h 30ml Syringe:720ml/h 20ml Syringe:480ml/h 10ml Syringe:240ml/h
Power Source	100-240Vac,50/60Hz;Internal rechargeable Li battery,capacity³1800mAh,voltage=11.1V,4 hours backup time at the rate of25ml/h(appointed medium rate in IEC60601-2-24)for the new battery charged for 12 hours.To facilitate the use in some special occasions,the machine's DC outlet can be an external DC 12V 2A standby power supply.
IP Classification	IPX2
Syringe	Compatible with 10ml,20ml,30ml,50/60ml syringe of any brands after correct calibration The following brands of syringe sets are recommended:Dispovan,Romsons,BBRAUN,SHINVA
Syringe maximum value (under single fault condition)	1ml
Dimension	280mm(L)×255mm(W)×205mm(H)
Net Weight	3.6kg
Package Reference	1pc Carton:4.6KG,34cm(L)×32cm(W)×26cm(H) 2pcs Carton:9.2KG,76cm(L)×30cm(W)×36cm(H)

Product Process
Packing&Shipping
About Us
Ningbo CBMT Medical Equipment Co., Ltd (hereinafter referred to as "CBMT") is registered at Factory Add: No. 8, Huangninongan,Wuxiao, Kangting Village, Xiwu Street, Fenghua District, Ningbo City, Zhejiang Province. The company will adhere to the concept of quality first, superior service, and still be practical, pragmatic and enterprising, to develop new and far-reaching, bravely "step out" multi-channel multi-channel multi-level business cooperation! We will rely on years of experience in the medical industry and the broad prospects for the development of the industry to be specialized, refined and strong!
Exhibition
Services 1. Support customization based on your special request;2. OEM is available;3. Special LOGO printing is available;5. Shipping within 5-7 days after 100% payment , Fedex, DHL, TNT, EMS, UPS, Etc.
Anyway, should you have any intersts or some more info needed on our surgical lights & allied gas items (gas cylinder valves,gas regulators, medical hospital central oxygen system products), you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)

---
