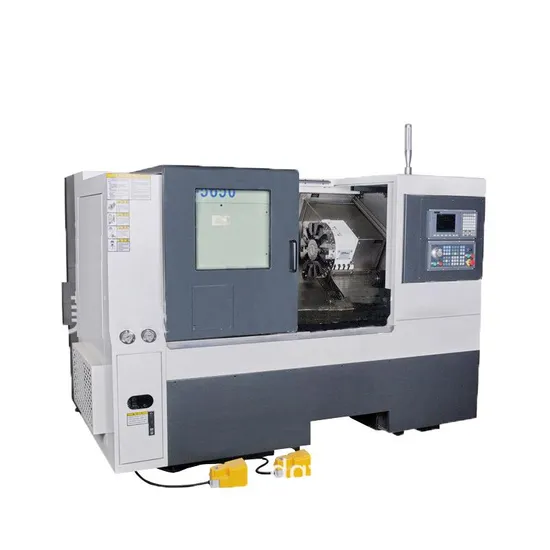

High Speed Driven Machine Tool Turret Hydraulic Tailstock CNC Slant Bed Siemens Heavy Turning Milling Lathe

Product Description

Product Description
1.This machine is a two -coordinate (longitudinal Z,horizontal X) continuous control horizontal CNC lathe .lt has higt processing performance for the processing of shft and disc parts.lt is suitable for large batch size ,high processing precision and dimensional consistency.lt requires high processing of parts ,especially suitable for ,aerospace ,automtive ,mold,instrumentation and other mechanical processing industrise,and efficient,high -volume ,high -precision machining of parts.lt is a high effciency,high precision,high quality,high efficiency,low cost machine tool.
2.The machine tool adopts a mechanical, electrical and hydraulic integrated structure, and the overall layout is reasonable. Its high speed, high precision and high rigidity provide users with high efficiency and high reliability in use. The key purchased parts are purchased through bidding, and the products of well-known manufacturers are selected to ensure the precision and reliability of the machine tool. The whole machine adopts a closed full protective structure, which conforms to the principle of ergonomics and is easy to operate, which is conducive to safety and reduces the pollution to the production and operation environment.
Main Features
Slant bed 45 degree, Spindle bore diameter 86mm, Max.swing over bed 560mm, Max. Turning length 500mm, CNC controller system, main spindle servo motor 11kw, Spindle unit speed 3500rpm, Taiwan linear guideway, 10 inch hollow type hydraulic 3-jaw chuck, 8-station servo turret, One-piece bed, Hydraulic tailstock, Chip conveyor with cart, Automatic cooling and lubrication system, Work light, Alarm light Detailed Photos

Product Parameters

Main Technical Parameters
ITEM	MODELS	LZ-0615Y/400	LZ-0812Y/550
Spindle Nose	-	A2-5	A2-6
Diameter of Spindle Through Hole	mm	56	66
Bar Diameter	mm	46	52
Max. Swing Over Bed	mm	420	550
Max. Turning Diameter	mm	290	500
Max. Turning Length	mm	350	500
Spindle Speed (C Axis)	rpm	0-4500	0-4200
Milling Spindle Speed	rpm	0-4500	0-4500
X/Y/Z Axis Rapid Moving Speed	m/min	25	25
X/Y/Z Axis Repeated Positioning Accuracy	mm	0.003	0.003
X/Y/Z Axis Positioning Accuracy	mm	0.005	0.005
X Travel	mm	450	640
Y Travel	mm	±35	±45
Z Travel	mm	390	540
Tailstock Sleeve Taper	-	Morse4#	Morse 5#
Spindle Motor	kw(um)	7.5KW/6000rpm	11kw / 6000rpm
X/Y/Z Motor	kw(um)	2.4/11.5um	2.4 / 11.5um
Water Tank Capacity	L	125	135
Machine Weight	kg	3600	4000
Machine Dimenssion	mm	2420x1800x800	2750x1950x2230

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at

---
