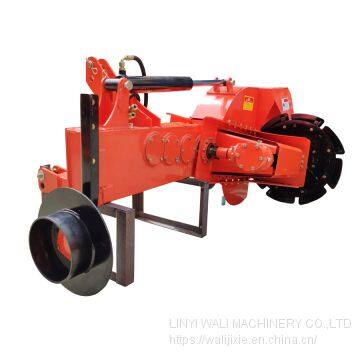

Single side Bund Making machine for paddy field

Product Details

Product Description

Product Description
Bund Making machine
Bund Trimming Machine
Levee Plastering Machine
Ridge forming Bund making machine
Ridge plastering machine
Bund forming machine
Bund making for rice paddy
Advantage:
1) Drive type: gear box and chain dirve .
2) Multipurpose: rice paddy field ridger making machine and build Canal.
3) Material: Alloy shovel and Manganese steel shrapnel.
4) It can be operated in frozen soil environment.

Model	ZGJ-300H
Name	Single side ridger making machine
Work speed	1200-2000 m/h
Configuration tractor	29.4 kw (40HP) Tractor
Transmission type	tractor PTO / shaft drive
on-link mode	After the tractor mounted
Height adjustment	After the tractor mounted / hydraulic cylinder adjust
Oil consumption	≤3kg/km
Overall size	Length 950mm
	Width 2040 mm(working) width1150 mm (moving)
	Height 1000 mm
Net weight	400 KG
Speed	240-280 r/min
Optimum operation conditions	The soil moisture content 30% - 60%

main pictures.
main pictures.
Three-point Suspension
Suspension type: same as like the tiller Suspension type，it's need to link to tractor hydraulic quick outlet, convenient to pick up and transporter.
Transmission Drive System
Gear box Transmission Part main picture (Figure 1)
Note: The gearbox has filling port and observation hole, which is convenient for users to fill gear oil and maintenance.
Drive shaft drive part (Figure 2)

Gear drive part main picture (instead of the chain drive) (Figure 3)
Transmission drive system: whole machine drive gear box drive and shaft drive, not the chain drive, have the long work lift and lower failure rate.
Rotary Blade
Configuration the high quality and international standard rotary blade, convenient client order nearby.
Rolling Plate Material
Two type: one is Manganese steel, and another is white steel (Higher hardness, low wear and tear and no soil).

Limit wheel in order to control travel direction.
PTO drive shaft: one side 6 key, another side 8 key.
