Low Broken Maize Flour Mill Corn Wheat Milling Machine Complete Plant Line Price for Africa

Product Description

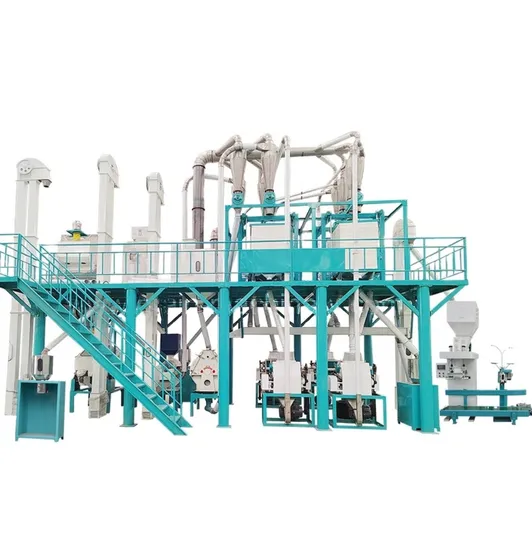

30 Ton Per Day Maize Wheat Corn flour mill plant is very popular in Nigeria, Ethiopia,etc African countries and South Asia, Central Asian countries.This middle size flour mill machine is very easy to install and operate, clients can install themselves under our guide, if clients insist, we can send our engineers to install it.
It is suitable for both private and industrial business to process supplied material of grain. With high productivity and low power consumption, it functions well and is easy to maintain.

1. Capacity: 20 ton of input of wheat per 24hours
2. Flour extraction rate:

Flour type	Flour yield	Flour quality
Standard flour	75-78%	40-120 Mesh Fineness ,you can adjust the fineness

3. Power supply: about 63.2 kw/ 380V, 50 Hz ;
4. Workshop style and dimension: 14m long, 5m wide and 4.5m ;
5. Packing details: packed in one 40 GP container ;
Processing technology
1. Technology of cleaning parts: two screening, twice de-stone, twice scouring, once washing, twice air separation, twice magnetic separation.
2. Technology of flour milling parts: flour sets of 6F single roller mill, one set Twin-section Plan-sifter;one set Bran Finisher;plansiter than sives: machine configuration is higher, equipment investment is higher, flour grading is better.
30tpd wheat flour mill plant technical data:
1. capacity: 30 ton of input of wheat per 24hours
2. flour extraction rate: standard flour 75%-78%(adjustable)
3. power supply: about 90kw with flour packing system/ 380V, 50 Hz, 3 phase
4. power consumption: 55 kw/h in processing one ton of wheat
5. workshop style and dimension: workshop with 12m long, 5m wide and 4.5m
Processing
1. technology of cleaning parts: one set of three-in-one cleaner, one set of washer-stoner, one set of clean wheat scourer and one set of plane revolve sifter, consists of twice screening, twice de-stone, twice scouring, once washing twice Magnetic Separator and twice air separation.
2. Technology of flour milling parts: six sets of 6F 2240 roller mill, consists of 4B (breaking system) and 2R (reduction system).
Detailed Photos

Packaging & Shipping

Company Profile
Main Features
1.Automatic whole line can save workers, one person can be available for operation.
2.Complete function processing as cleaning wheat, corn maize, peeling maize, and grinding wheat, corn maize into wheat, maize corn flour and maize corn grits and wheat, maize bran.
3.Clean wheat, corn maize to remove stone, metal, sand and all sorts of impurities.
4.Peel maize to remove maize skin, remove maize germ, remove black maize hilum. After cleaning and peeling, it prepares best maize material for further processing into maize flour or grits.
5.You can choose the mesh to make the flours fine as you requirement.
6. Simple structure in linear type, easy in installation and operating.
7. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
8. High pressure double crank to control the die opening and closing.
9. Apply a linker to connect with the air conveyor, which can directly inline with filling machine. FAQ
Q1.Are you the manufacturer?
Yes,Our factory was build in 1983 year,we are specialized in complete wheat,maize and other grain flour milling processing machine.
Q2. Does the flour mill can produce different kind of maize meal, maize flour same time?
Yes, the flour mill line can produce different size maize meal or maize flour at same time at one production line.
Q3. Does the flour mill line can running with Generator?
Yes, the flour mill line can running with Generator.
Q4. Does the flour mill packing machine can pack different bags?
Yes, the packing machine can pack 1kg-5kg; 5kg-20kg, 12.5kg-25kg, 50kg.
Q5. Does the flour mill line can processing maize and wheat same time?
No, it is because the maize and wheat Physical Characteristics is different, like the shape, the hardness, all are different, and the final product flour size is also different. The cleaner, the roller mill parameter, the plan sifter sieve all are different. As professional manufacture for maize meal or flour, cannot processing maize and wheat same time.
Services
What is the after sale service our company provide of corn flour milling machinery?
1. Two years spare parts delivery together with the machine.
2. Warranty 2 years of corn flour milling machinery.
3.Chinese professional engineer guide installation and commissioning.

---
